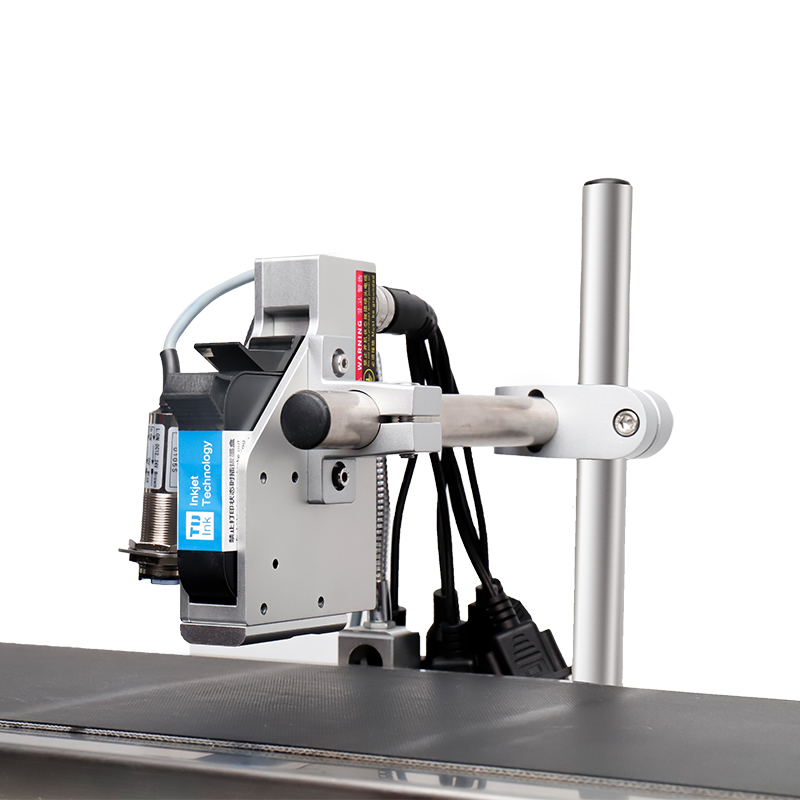

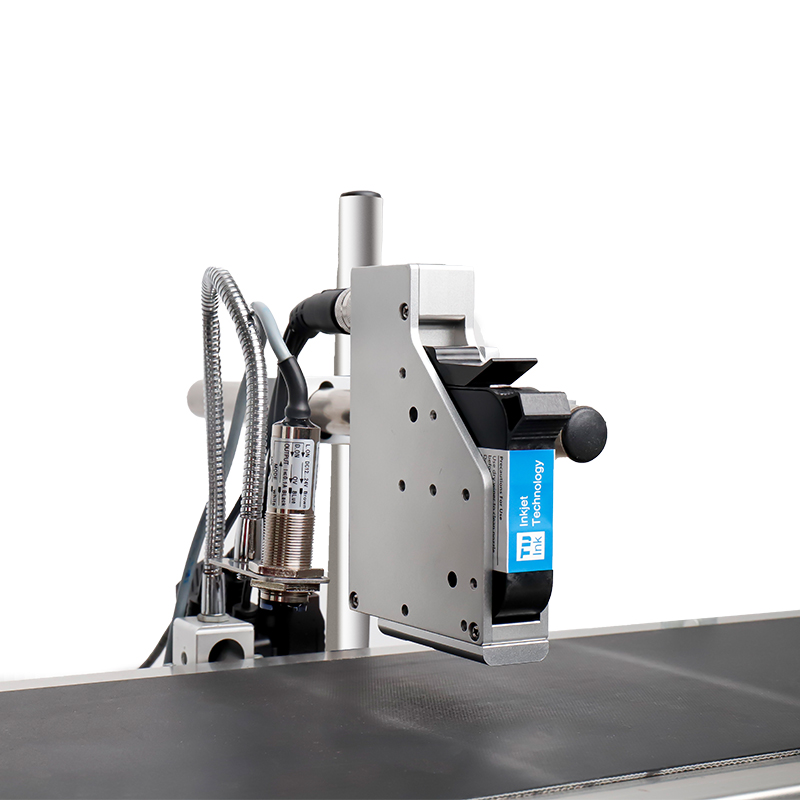

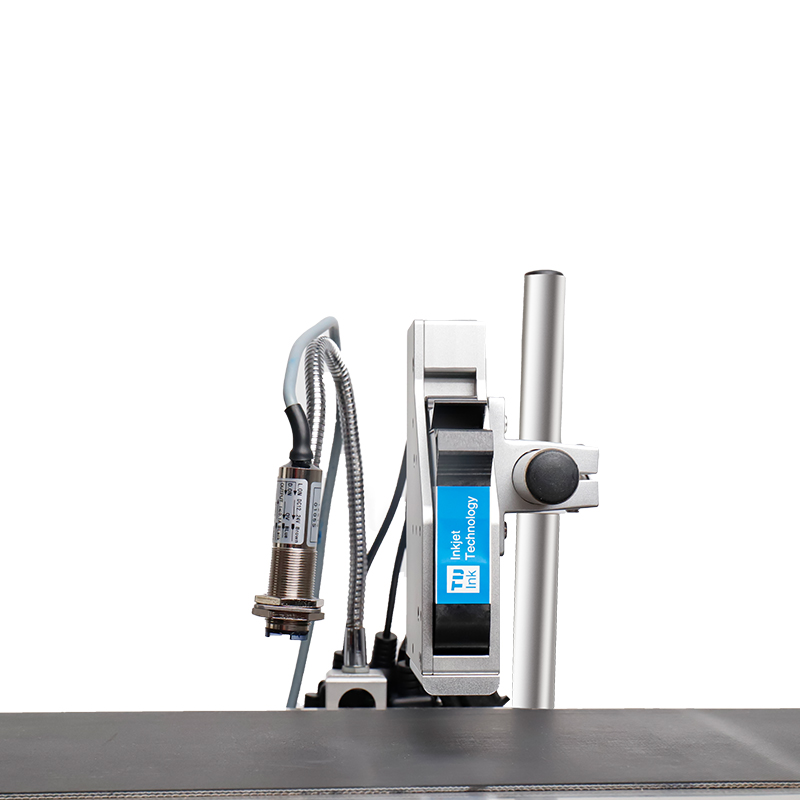

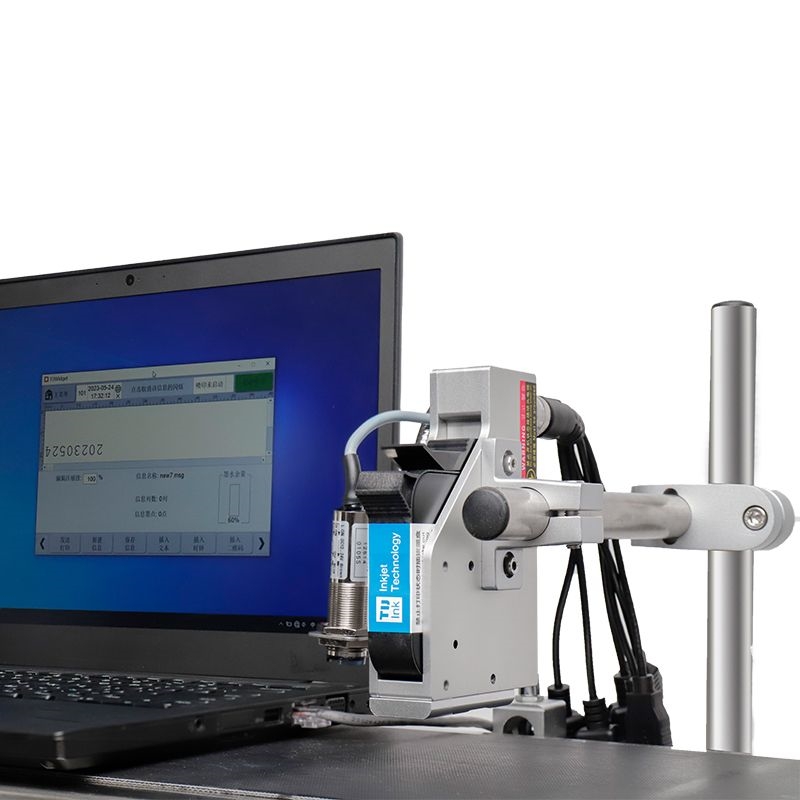

TX1 Multi-purpose Multilingual High Speed TIJ Inkjet Printer

• Tx1 integrated variable data printing system adopts high-performance industrial cortex-a7 1.2gHZ dual-core processor, independently developed printing engine algorithm, industrial fpga chip, high anti-interference level's motherboard. The printer equipped with usb. Serial port, information control. Optical sensor and encoder hardware inter-face. It can maintain stable printing qualities at high or low temperature and in dusty, damp, interference environment.

• It has a stable and efficient linux security intelligent operating system. An independently developed ultra-high-speed printing management system, which can achieve dynamic information group printing. Tx1 supports traceability systems, anti-counter-feiting systems, food and drug monitoring codes, and dynamic databases. The printing speed can reach up to 406m/min, and resolution ration up to 600dpi. We support oem and Customization.

•

• Technical Parameters





  Machine
  Operating System	Embedded Linux Operating System
  Main Hardware	Cortex-A7 1.2GHz dual core processor industrial grade FPGA chip

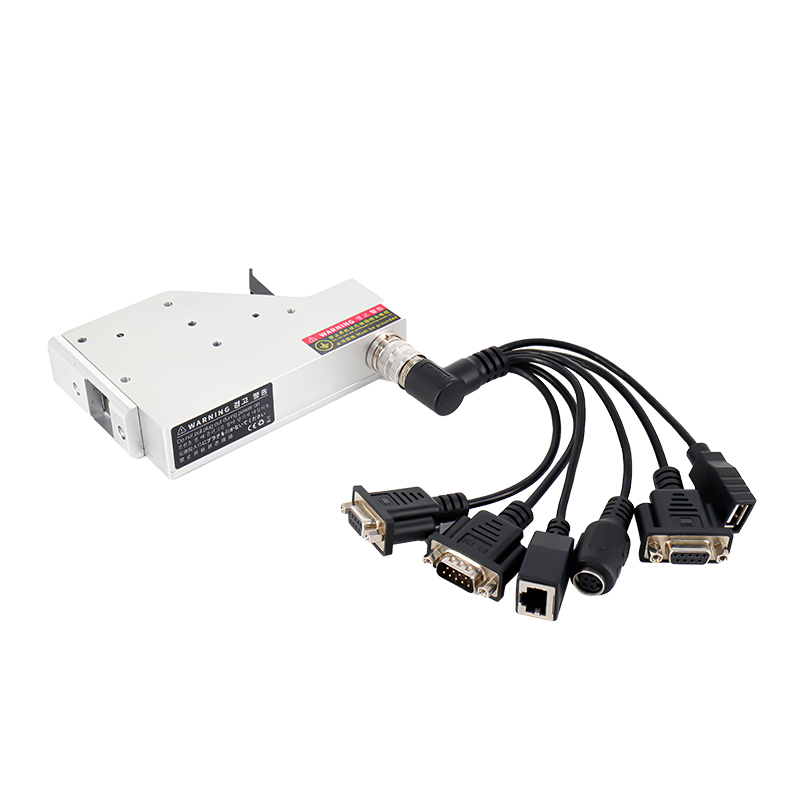

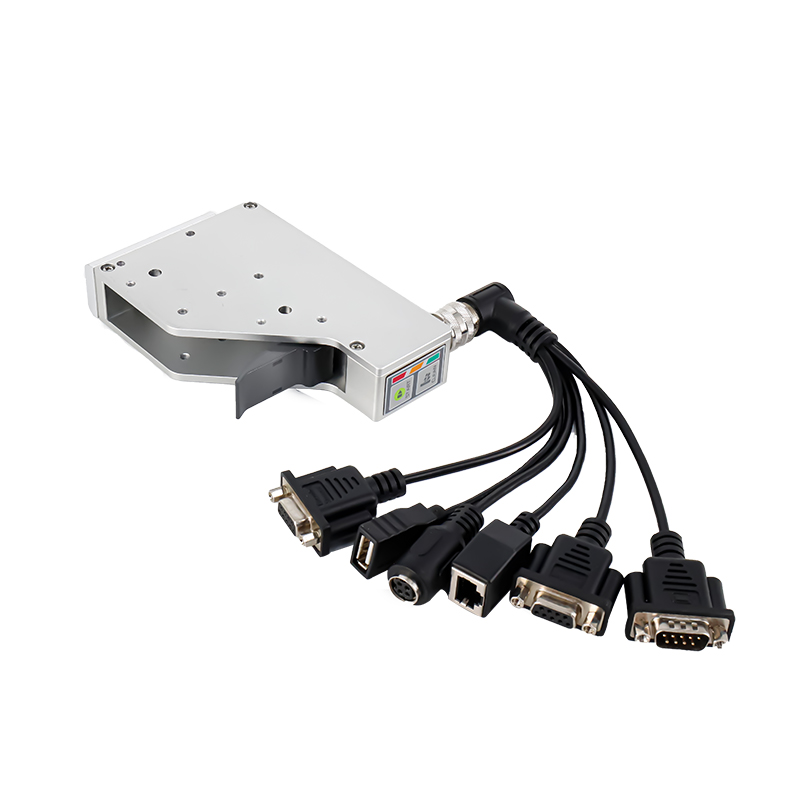

  Communication Interface	USB, RS232, Network
  External Interface	Optical sensor, encoder, upside down control
  Support Language	Italian, English, French, Finnish, Arabic, Danish, German, Russsian, Norwegian, Portuguese, Spanish, Japanese
  Power Supply	100-240V AC input, 30V 1.5A DC output
  Body Material	Industrial grade standard protective case (aerospace grade aluminum)
  Size	128mm*87mm*27mm
  Work Environment	Temperature: 0-45°C, humidity: 30-70%Rh

  Printing Head
  Printing Type	TIJ 2.5 Thermal Foaming Head
  Print Accuracy	Up to 600x600 DPl, adjustable printing gray level 1-6
  Print Height	Minimum 1mm / Maximum 12.7mm
  Print Speed	406m/90DPI、304m/120DPI、240m/150DPI、120m/300DPI、60m/600DPl
  Print Contents	Mult languag characters, GS1 data matrix, dynamic traceability QR code, image, serial number, date, shift, counter, variable database, network serial port real-time dynamic date printing
  Printable Substrates	Cardboard, Plastic, Metal, Cables, Electronic components, Auto Parts, Industrial chemical packaging, Pharmaceuticals and more
  Ink Type	42ml food grade/water based/oil based/weak solvent/solvent ink cartridge, CISS with large capacity ink bag
  Ink Color	Black, White, Red, Yellow, Blue, Green, invisible, UV
  Cartridge Chip	RFID non-contact chip for automatically identifying ink parameters and recording ink remaining

  • Integrated design for easy installation , with complete functions

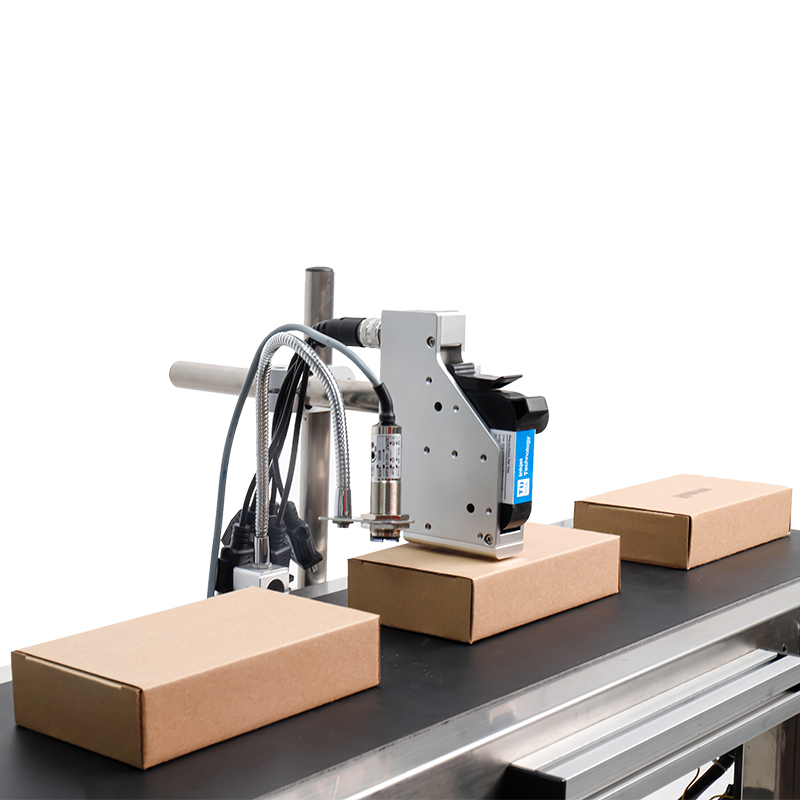

  • Less space demand, more suitable for small production line

  • Support remote PC control and offline printing

  • Support GS1 DM and OR codes and other anti-counterfeiting tracing printing

  • Speed up to 406m/min

  • Self-developed software, easy to maintain

  • The number of nozzles can be spliced as required.
