MFT220E High Speed Variable Date Printing System
MFT220E High Speed Variable Date Printing System
GS1 DataMatrix
Network remote centralized management
Production line alarm light control
Calculate printing costs in real time
Wireless keyboard and mouse control
Anti-counterfeiting trace data printing
Printing speed up to 406m/min
Lighter and thinner more flexible
Machine
Operating System
Embedded Operating System
Main Hardware
Cortex-A7 1.2GHz dual core processor industrial grade FPGA chip
Communication Interface
Network Interface USB/RJ45 to RS-232
External Interface
Photocell, Encoder, Alarm output
Support Language
Italian, English, French, Finnish, Arabic, Danish, German, Russsian, Norwegian, Portuguese, Spanish, Japanese
Power Supply
30Volts 3Amps DC output
Body Material
Industrial Stainless steel
Dimension Controller

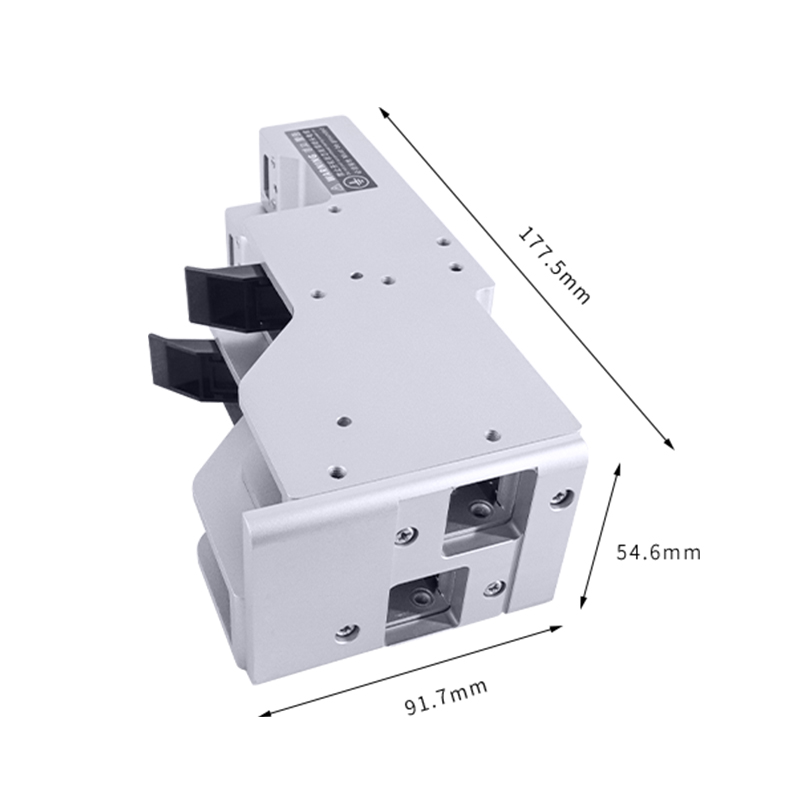

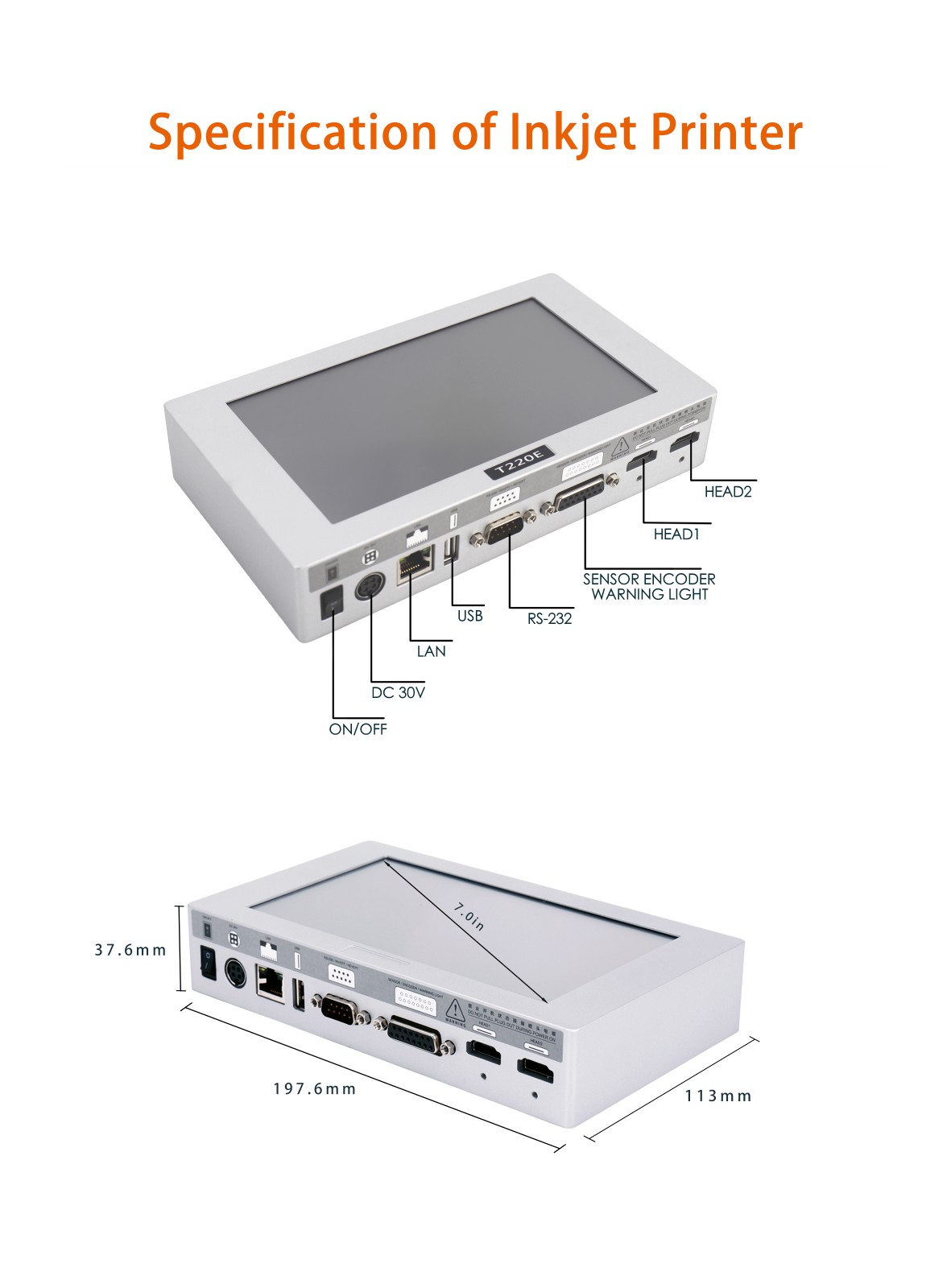

Controller: 197.6mm*113mm*37.6mm / Head Holster 177.5mm*91.7mm*54.3mm/Screen 7 inches
Working Environment
Max Temp 55C Degrees / Humidity 30 to 70% RH
Printing Head
Nozzle Type
Thermally Foamable Head TIJ2.5
Print Accuracy
90DPI / 120DPI / 150DPI/300DPI/600DPI
Print Height
Minimum 1mm / Maximum 25.4mm
Print Speed
406m/min at 90DPI / 304m/min at 120DPI / 240m/min at 150DPI / 120m/min at 300DPI / 60m/min at 600DPI
Print distance
2mm to 5mm
Print Contents
Multi language Characters, 2D Code, Barcodes, Images, Serial Number, Date,Counters, Variable Database, RS232 to receive real data to print
Printable Substrates
Cardboard, Plastic, Metal, Cables, Electronic components, Auto Parts, Industrial chemical packaging, Pharmaceuticals and more
Ink Type
Aqueous or Solvent based 42ml Cartridges CISS
Ink Color
Black, White, Red, Yellow, Blue, Green, Stealth, UV readable
Cartridge Chip
Contactless RFID tags for automatic identification and recording ink parameters and consumptions
