MFT110M Thermal Printing Machine
Offers high resolution and speed, with strong adaptability to industrial environments. It has a compact integrated nozzle design, easy-to-replace ink cartridge, and simple maintenance. It guarantees high-quality printing in harsh environments and is suitable for various industries.
Products
Products DETAILS
MFT110M Thermal Printing Machine
MFT110M Thermal Printing Machine
Thermal Foaming Inkjet Printer Flexibly Adapted To The Environment
Offers high resolution and speed, with strong adaptability to industrial environments.
It has a compact integrated nozzle design, easy-to-replace ink cartridge, and simple maintenance.
It guarantees high-quality printing in harsh environments and is suitable for various industries.
Machine Type
MFT110 Thermal Printing Machine
Nozzle type
TIJ 2.5 thermal foaming nozzle
Nozzle number
1
Printing accuracy
Maximum: 600DPI * 600DPI
Vertical optional: 150DPI, 300DPI, 600DPI
Horizontal optional: 30-600DPI precision adjustment
Printing height
12.7mm (single nozzle height is 12.7mm)
Printing distance
1-2mm
Number of printing lines
Any number of lines can be edited within the effective printing height
Printing speed
406m/min(90DPI), 304m/min(120DPI), 240m/min (150DPI), 120m/min(300DPI), 60m/min(600DPI)
Print content
Text, time, date, pattern, shift, serial number, dynamic barcode / QR code, dynamic serial data, dynamic database(Additional content can be added as required)
Barcode types: CODE11, C25INTER, CODE39, EXCODE39, EAN13, EAN13x, CODE128, CODE16K, CODE49, CODE93, Flattermarken, UPCA, UPCE, EAN14, VIN, NVE18
2D code types:QRcode, DataMatrix, MicroQRcode, PDF417, PDF417TRTRUNC, MICROPDF417
Counter
More than 20 independent counters
Printing material
Carton, plastic, metal, sheet, pipe, stone, cable, glass, electronic components, auto parts, industrial chemical packaging, medical food gift box
Ink type
Food grade, water-based, oily, weak solvent, solvent
Ink color
Black, white, red, yellow, blue, green, invisible, UV
Operating system
Embedded Linux security operating system
display screen

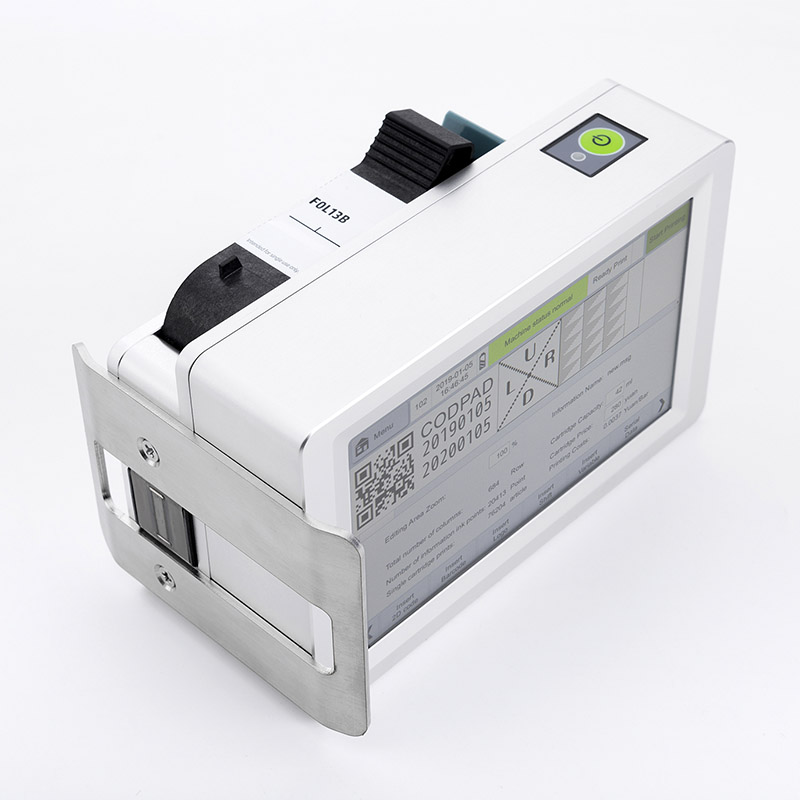

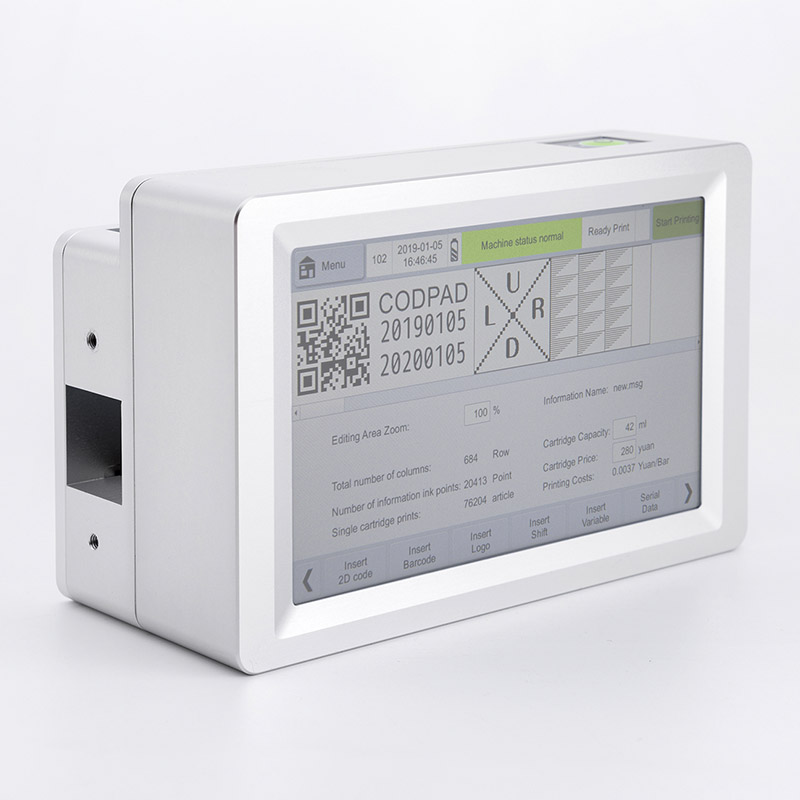

5 inch color display, industrial touch screen
Main hardware
American TI AM3358 industrial grade CPU, American Xilinx Spant9 industrial grade FPGA, TIJ dedicated ASIC chip
Communication Interface

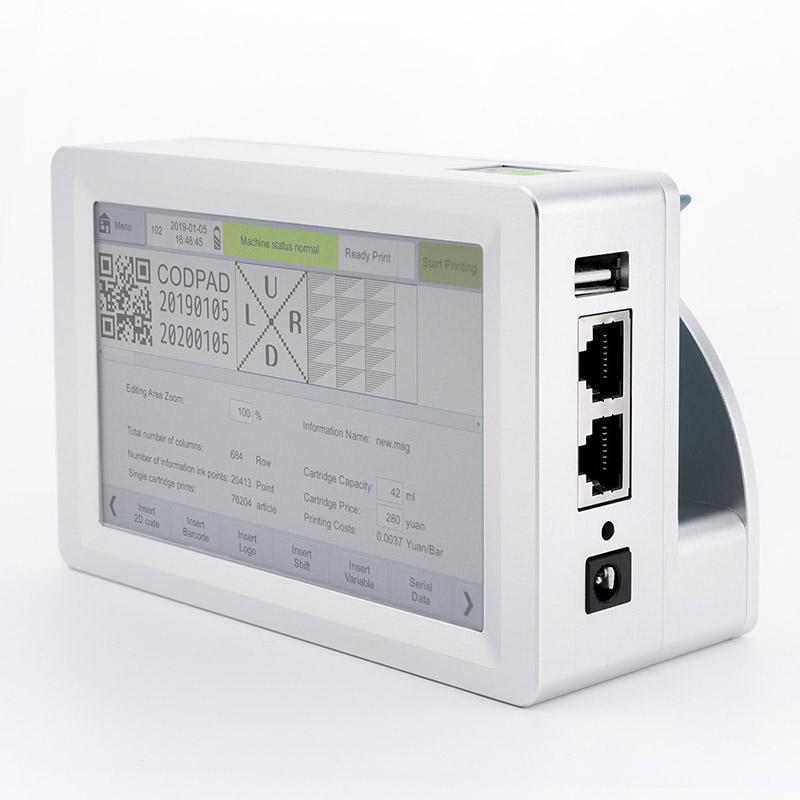

Network interface, USB, RS232
External interface
Optical eye, encoder, flip upside down control
Nozzle installation
Built-in integrated nozzle
Support language
Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Norwegian, Portuguese, Japanese, Spanish, Italian, etc.)
Power parameters
12Volts 3Amps DC output
Body material
Industrial Stainless Steel
Machine specifications
Host 138mm * 87mm * 88.2mm; nozzle group 112mm * 79mm * 103mm
Working environment
Temperature 0-45 ℃ / Humidity 30-70% Rh
Related certification
RoHS, CE, EAC
Software features
T110M Inkjet Printer has a stable Linux security operating system, combined with a self-developed high-speed printing management system, can achieve an ultra-high-speed printing response time within 10 milliseconds of each product.
High-quality content, high-speed printing, up to 406m / min
One object, one code. Identification data printing, anti-counterfeiting and traceability management, network-related product information can be queried
Real-time calculation of printing cost function, directly display the printing cost of each message, which is convenient for manufacturers to calculate prices
Support GS1 DataMatrix, serial format to meet the printing requirements of various industries
Compatible with a variety of weighing protocols, can be connected with multiple manufacturers of different models of electronic scales, directly print the weight and price barcodes that meet the supermarket
Support access to wireless keyboard and mouse, flexible control interface function
Support scanner input information, not only can quickly enter information, but also to ensure the accuracy of information
1-6 gray scale adjustment, plus black printing effect, the display is clearer when printing different substrates
Unique encoder stepless frequency conversion function, which can adjust the printing width as required
Hardware features
Inkjet Printer with AM3358 industrial-grade high-performance CPU and Spartan6 industrial-grade high-computing FPGA as the core control chip, it can easily process various variable printing data in the case of high-speed printing.
Stable hardware layout, while using anti-interference industrial electronic components, can still guarantee excellent printing effects in various interference harsh environments.
High-precision SMT patching process, detailed DIP plug-in post-solder, multi-dimensional PCBA finished product testing, to ensure the high quality and reliability of the hardware from all aspects of the process.
The integrated motherboard design is more reliable than the letter board design, and the data transmission interaction is faster, more stable, and safer.
Inkjet Printer Structural features

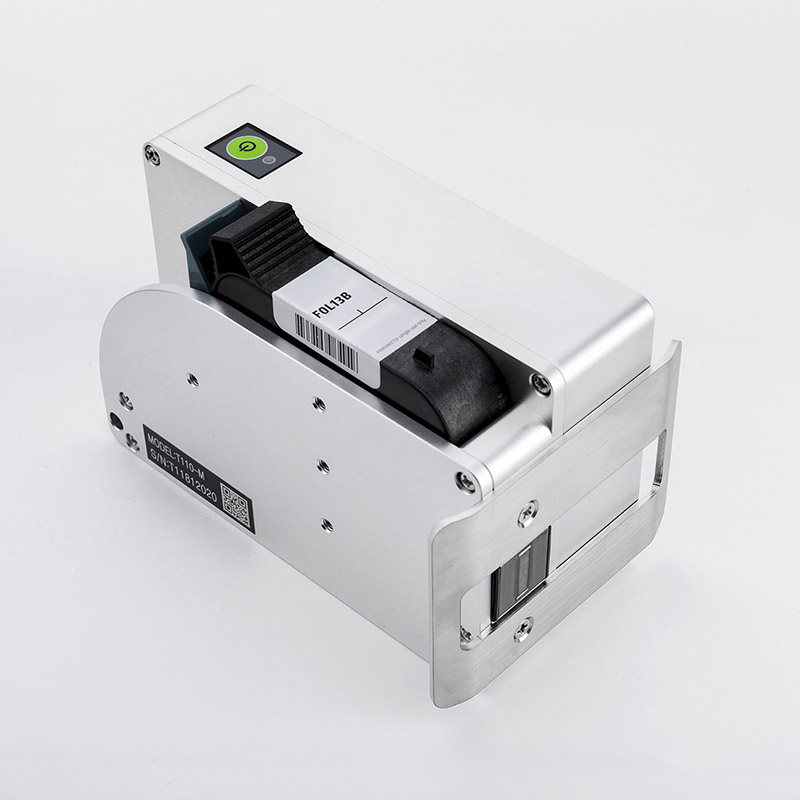

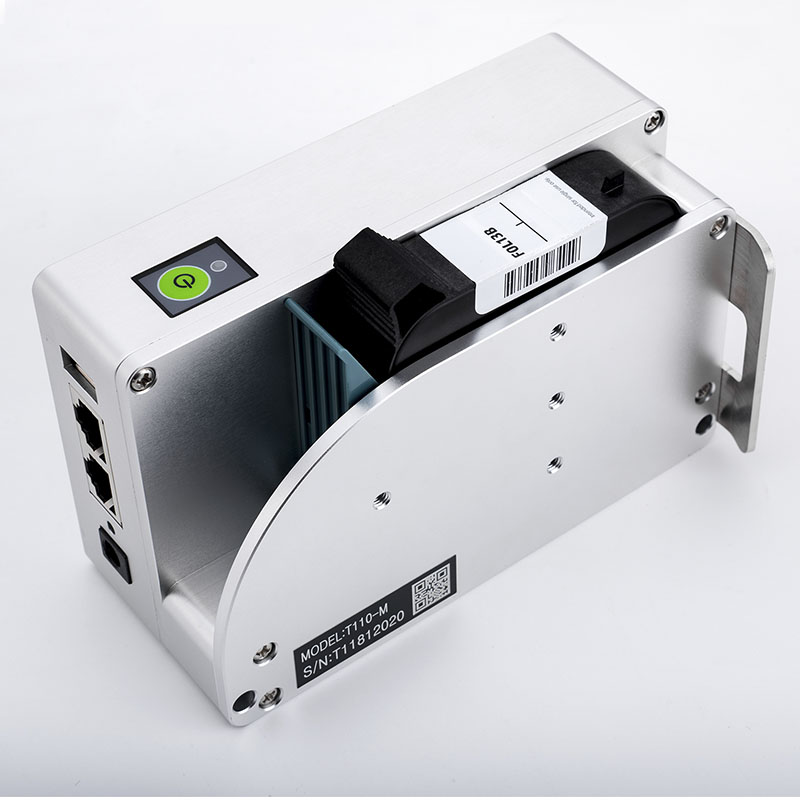

Built-in integrated spray head design, small size, can be adapted to install in various production environments
The maximum printing height can reach 12.7mm, and any number of lines can be printed within the printing height range

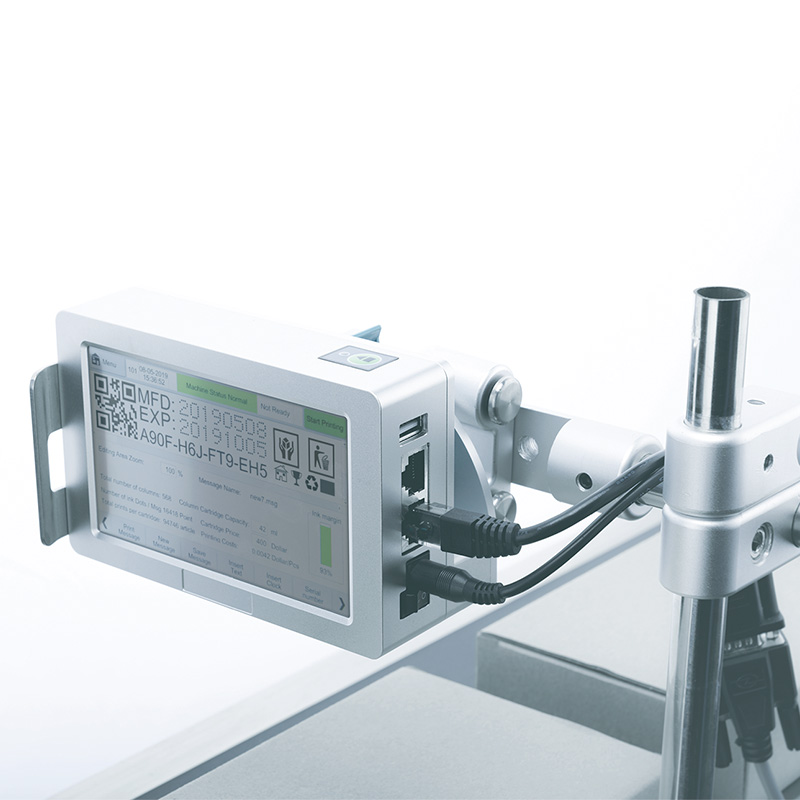

A variety of optional brackets, different installation methods, can be flexibly combined with various production equipment
Snap-on ink cartridge installation, firm and reliable, easy to replace
Ink supply characteristics
RFID non-contact chip, can identify the type of ink, automatically match the optimal printing parameters
Automatic calculation system of ink remaining quantity, predicting the number of prints left by each ink cartridge
Clean ink cartridge technology combines the nozzle and ink, no need to fill the ink messy, easy maintenance
Ink cartridge preheating function, can heat the nozzle in low temperature environment to maintain a stable printing status
Equipped with 42ml ink cartridge, and can be connected to a large-capacity ink bag or continuous ink supply system to ensure the continuity of printing
Other features about T110M Inkjet Printer
Related content can be customized according to needs
