T600 Thermal Inkjet Coder

Thermal Inkjet Coder Printing Height 76.2 mm

• Wireless Keyboard And Mouse Control

• Flexible And Efficient Splicing Mode

• Calculate Printing Costs In Real Time

• Anti-Counterfeiting Trace Data Printing

• GS1 International Medicine Monitor Code

• Machine Type	MFT600 Thermal Inkjet Coder
  Nozzle type	TIJ 2.5 thermal foaming nozzle
  Nozzle number	1-6, can be matched independently
  Printing accuracy	Maximum: 300DPI * 300DPI Vertical optional: 100DPI, 150DPI, 300DPI Horizontal optional: 30-600DPI precision adjustment
  Printing height（max）	38.1/50.8/63.5/76.2mm
  Printing distance	1-5mm
  Number of printing lines	Any number of lines can be edited within the effective printing height
  Printing speed	406m / min (90DPI), 304m / min (120DPI), 240m / min (150DPI), 120m / min (300DPI), 60m / min (600DPI)
  Print content	Text, time, date, pattern, shift, serial number, dynamic barcode / QR code, dynamic serial data, dynamic database(Additional content can be added as required)
  	Barcode types: CODE11, C25INTER, CODE39, EXCODE39, EAN13, EAN13x, CODE128, CODE16K, CODE49, CODE93, Flattermarken, UPCA, UPCE, EAN14, VIN, NVE18 2D code types:QRcode, DataMatrix, MicroQRcode, PDF417, PDF417TRTRUNC, MICROPDF417
  Counter	More than 20 independent counters
  Printing material	Carton, plastic, metal, sheet, pipe, stone, cable, glass, electronic components, auto parts, industrial chemical packaging, medical food gift box
  Ink type	Food grade, water-based, oily, weak solvent, solvent
  Ink color	Black, white, red, yellow, blue, green, invisible, UV
  Operating system	Embedded Linux security operating system
  display screen	10-inch color display, industrial touch screen
  Main hardware	American TI AM3358 industrial grade CPU, American Xilinx Spant9 industrial grade FPGA, TIJ dedicated ASIC chip
  Communication Interface	Network interface, USB, RS232

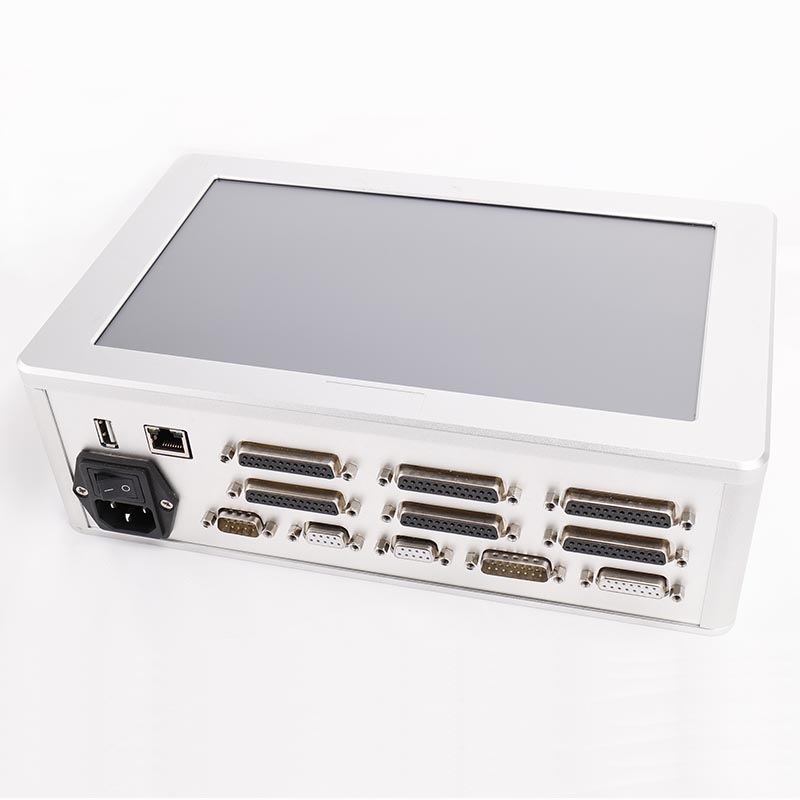

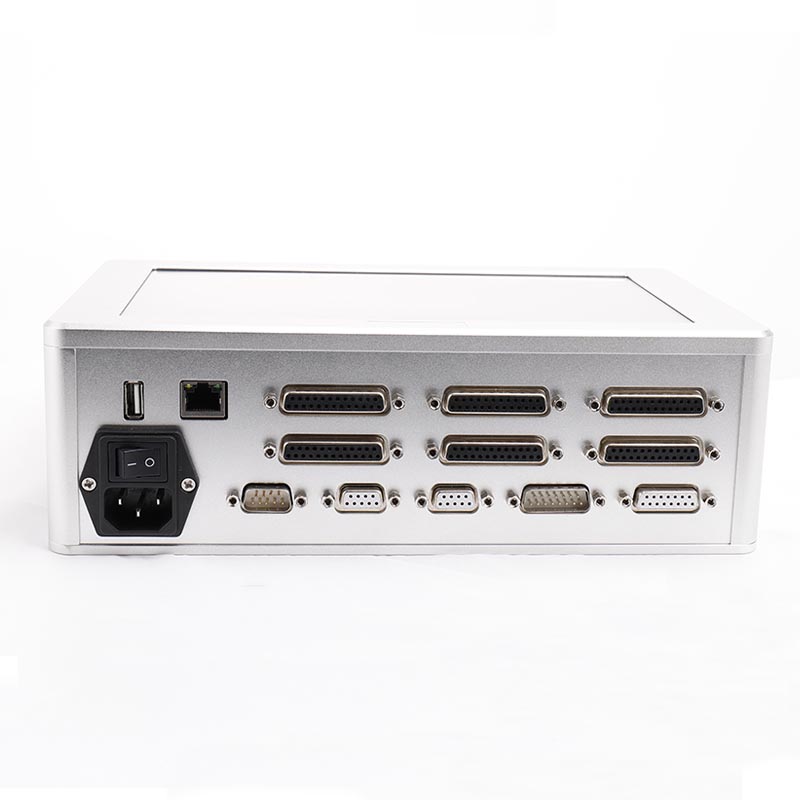

  External interface	Optical eye, encoder, reverse control, signal light alarm output, serial number output control, external printing information selection
  Nozzle installation	The nozzle is installed independently and can be matched with anti-collision components
  Support language	Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Norwegian, Portuguese, Japanese, Spanish, Italian, etc.)
  Power parameters	Input 100-240V AC
  Machine material	Aviation grade aluminum
  Machine specifications	Host 274mm * 165.4mm * 88mm; nozzle specification 163.5mm * 146.1mm * 114mm
  Working environment	Temperature 0-45 ℃ / Humidity 30-70% Rh
  Related certification	RoHS, CE, FCC

  Software features	A stable Linux security operating system, combined with a self-developed high-speed printing management system, can achieve an ultra-high-speed printing response time within 10 milliseconds of each product.
  	High-quality content, high-speed printing, up to 406m / min
  	One object, one code. Identification data printing, anti-counterfeiting and traceability management, network-related product information can be queried
  	Real-time calculation of printing cost function, directly display the printing cost of each message, which is convenient for manufacturers to calculate prices
  	Support GS1 DataMatrix, each series of formats meet the printing requirements of various industries
  	Compatible with a variety of weighing protocols, can be connected with multiple manufacturers of different models of electronic scales, and directly print the weight and price barcodes in line with supermarkets
  	Support access to wireless keyboard and mouse, flexible control interface function
  	Support scanner input information, not only can quickly enter information, but also to ensure the accuracy of information
  	1-6 gray scale adjustment, plus black printing effect, the display is clearer when printing different substrates
  	Unique encoder stepless frequency conversion function, which can adjust the printing width as required
  	The original nozzle double-row alternating mode, the left and right rows of ink cartridges are alternately printed to prevent nozzle clogging and effectively extend the life of the ink cartridges
  Hardware features	Using AM3358 industrial-grade high-performance CPU and Spartan6 industrial-grade high-computing FPGA as the core control chip, it can easily process various variable printing data in the case of high-speed printing.
  	Stable hardware layout, while using anti-interference industrial electronic components, can still guarantee excellent printing effects in various interference harsh environments.
  	High-precision SMT patching process, detailed DIP plug-in post-solder, multi-dimensional PCBA finished product testing, to ensure the high quality and reliability of the hardware from all aspects of the process.
  	The integrated motherboard design is more reliable than the letter board design, and the data transmission interaction is faster, more stable, and safer.

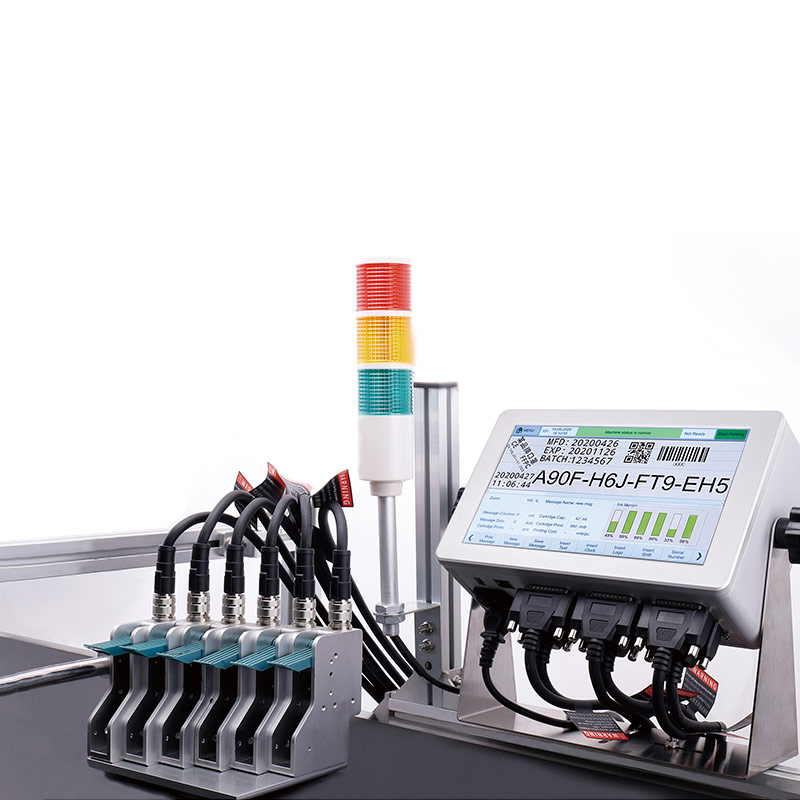

  Inkjet Printer Structural features	Separate nozzle design, free matching for 1-6 nozzles
  	Supports independent installation of six nozzles, or a variety of seamless splicing methods for any number of nozzles, the maximum printing height can reach 76.2mm, and any number of lines can be printed within the printing height range
  	A variety of optional brackets, different installation methods, can be flexibly combined with various production equipment
  	Snap-on ink cartridge installation, firm and reliable, easy to replace
  	Cartridge protection mechanism, anti-collision rebound assembly to prevent accidental damage to the nozzle

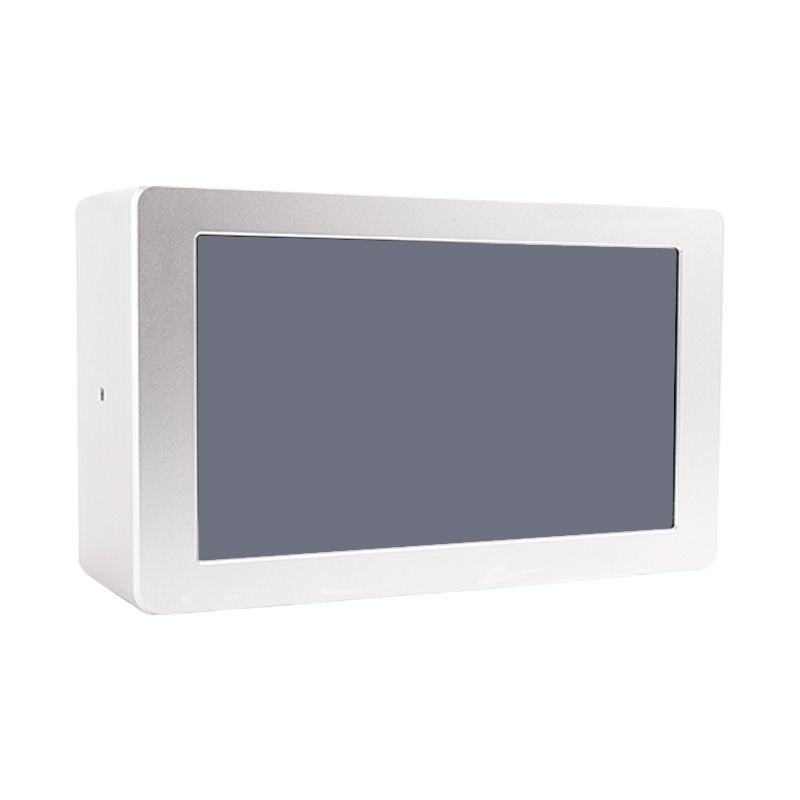

  	10-inch color display, industrial touch screen, excellent human-computer interaction experience.
  	Maximum support for six-channel optical eyes, six nozzles can be connected to each optical eye, support multiple production lines to operate simultaneously and print different content, improve production efficiency
  	The nozzle can be combined with the optical eye arbitrarily. After any number of nozzles are spliced, the number of optical eyes can be configured according to the requirements, and it can be flexibly adapted to various printing scenarios.
  Ink supply characteristics	RFID non-contact chip, can identify the type of ink, automatically match the optimal printing parameters
  	Automatic calculation system of ink remaining quantity, predicting the number of prints left by each ink cartridge
  	Clean ink cartridge technology combines the nozzle and ink, no need to fill the ink messy, easy maintenance
  	Ink cartridge preheating function, can heat the nozzle in low temperature environment to maintain a stable printing status
  	Equipped with 42ml ink cartridge, can be connected to large-capacity ink bag or continuous ink supply system to ensure the continuity of printing
  Other features about T600 Inkjet Printer	Multi-machine network remote centralized control, real-time feedback data, easy to manage
  	Signal analysis and processing, can be pre-prompted by the high alarm light of the production line
  	Related content can be customized according to needs
