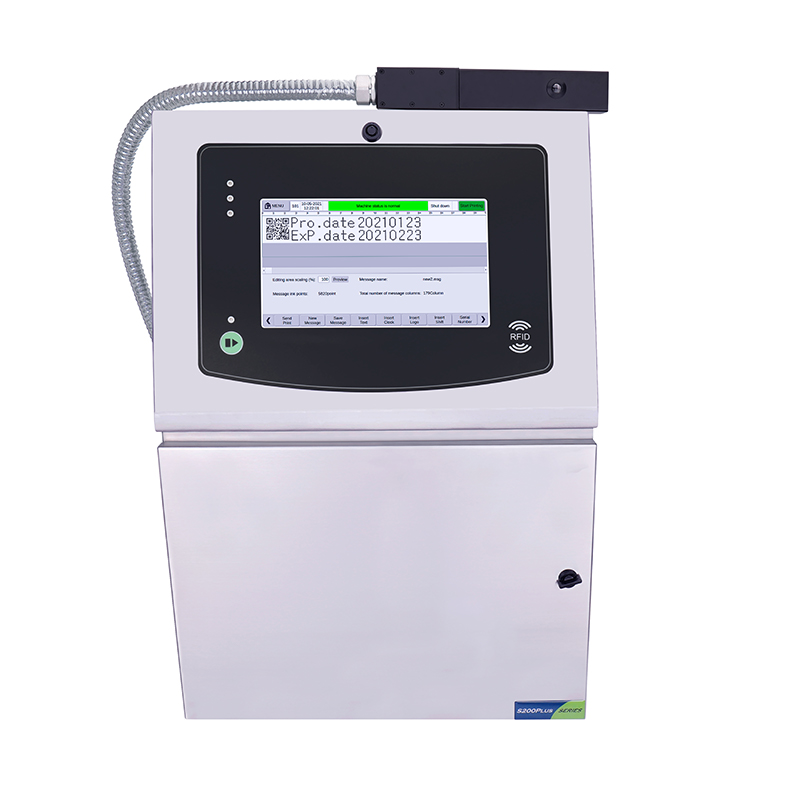

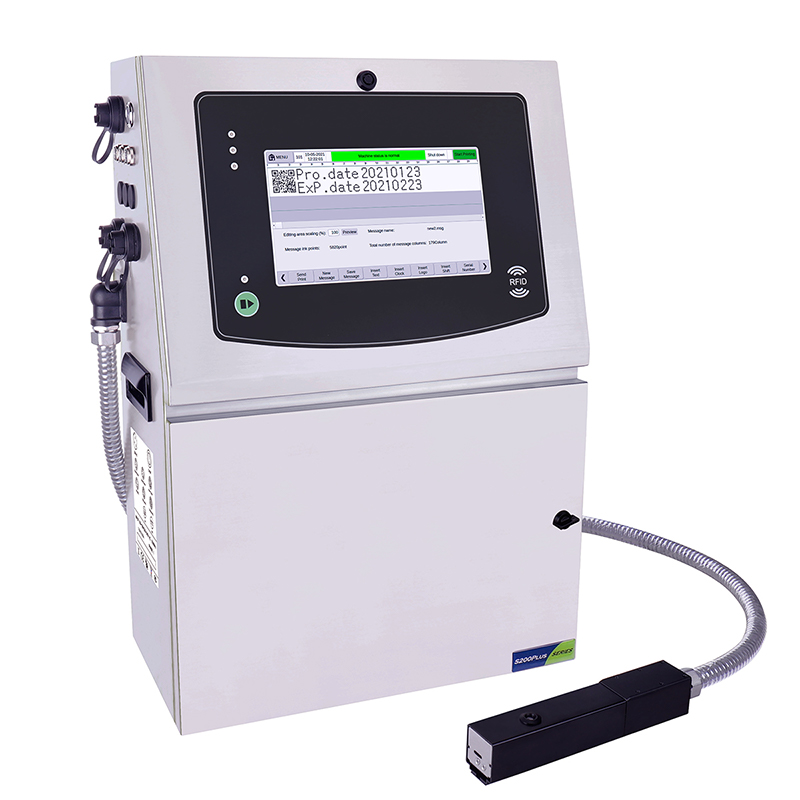

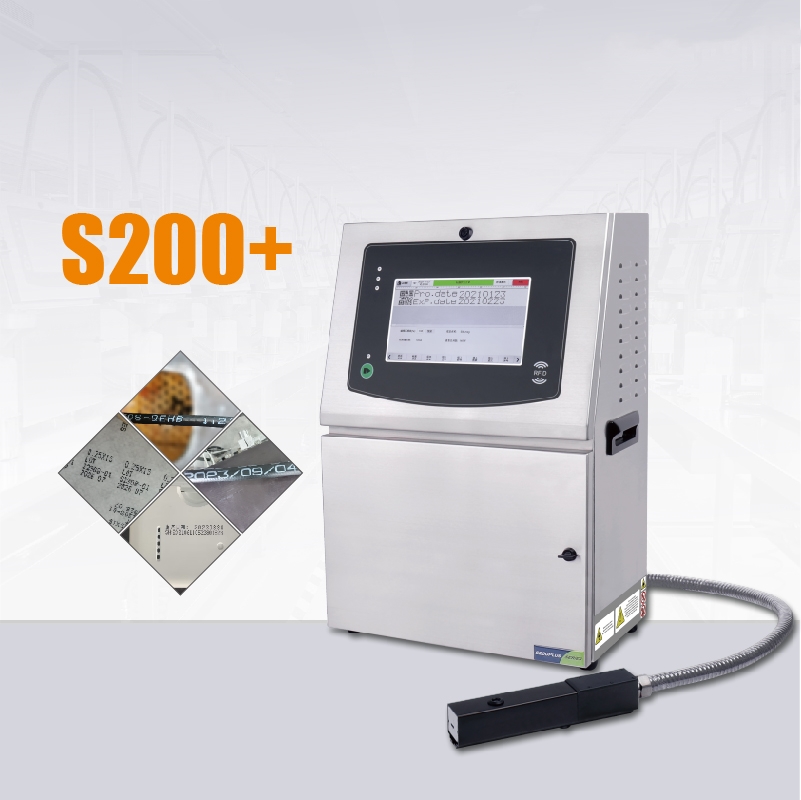

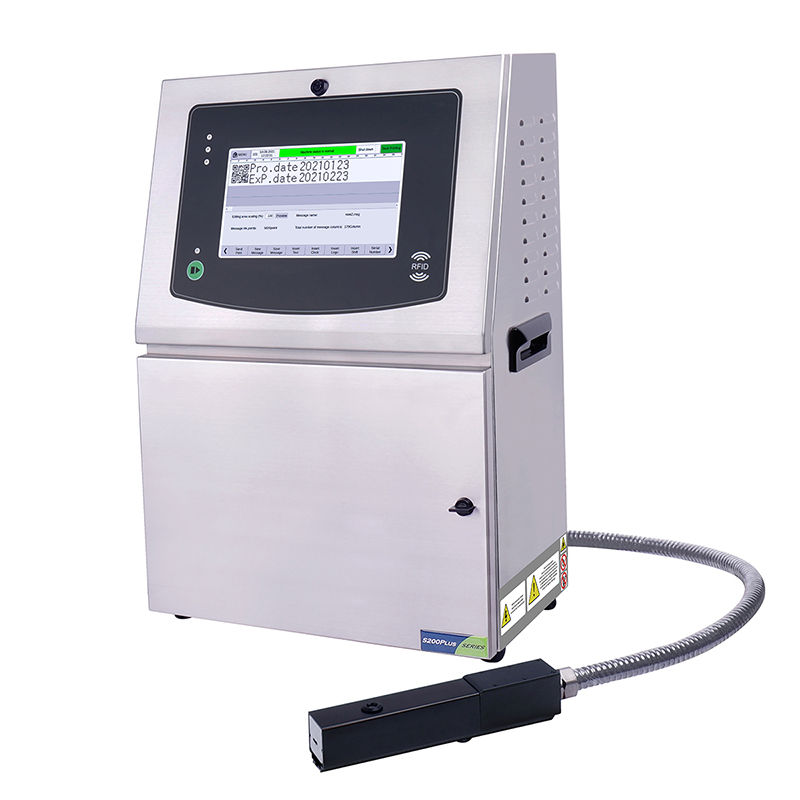

MFS200 plus Series Continuous Inkjet Printer

• Easy operation with 10.1"large screen

• One-key start and stop precise control

• Independent module maintenance is simple

• Automatic cleaning to prevent clogging

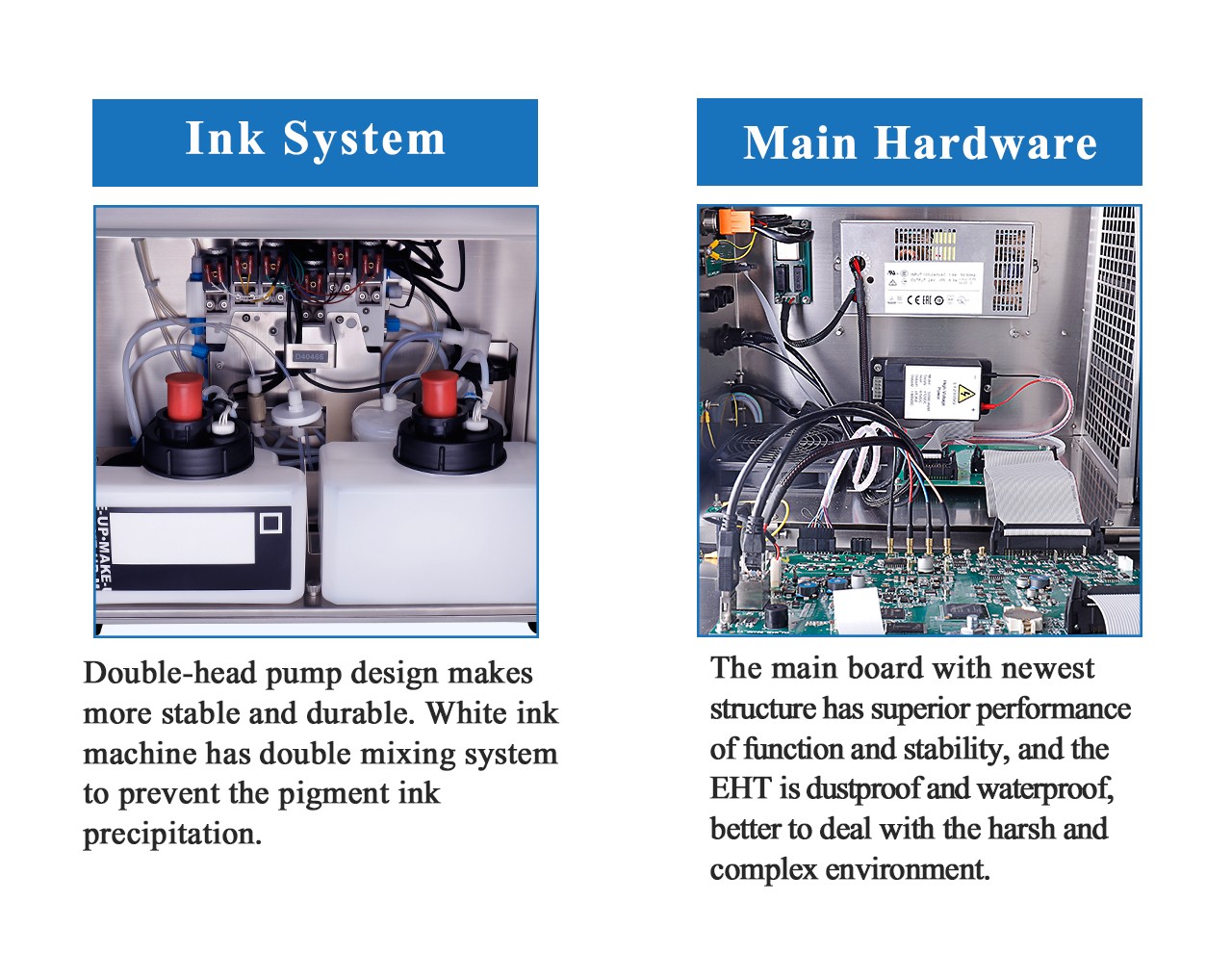

• Classic ink circuit is stable and reliable

•

• MFS200 Plus Printing parameters
  Machine type	MFS200 plus CIJ Inkjet Printer

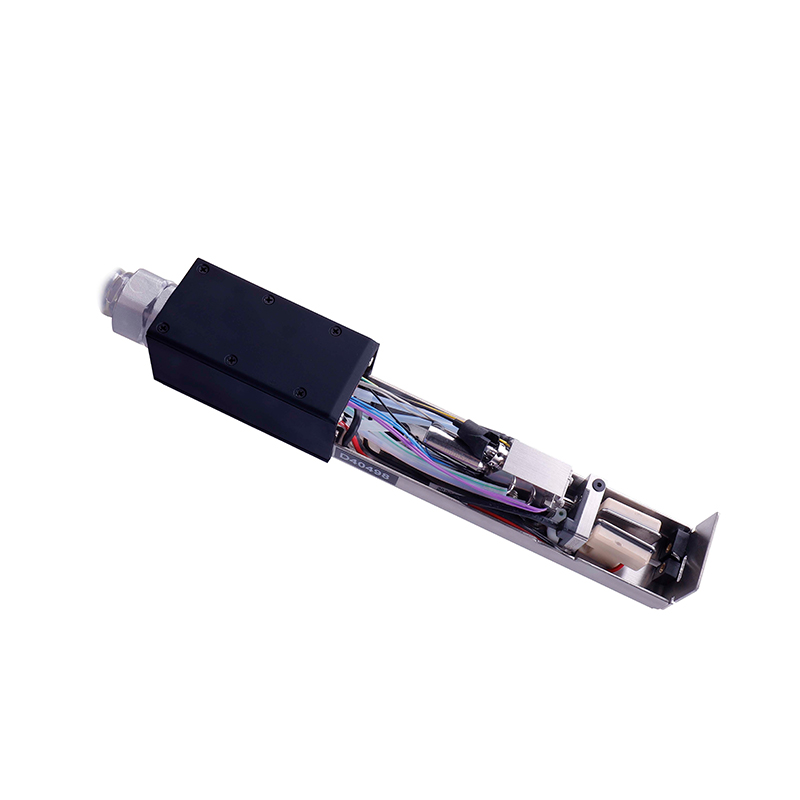

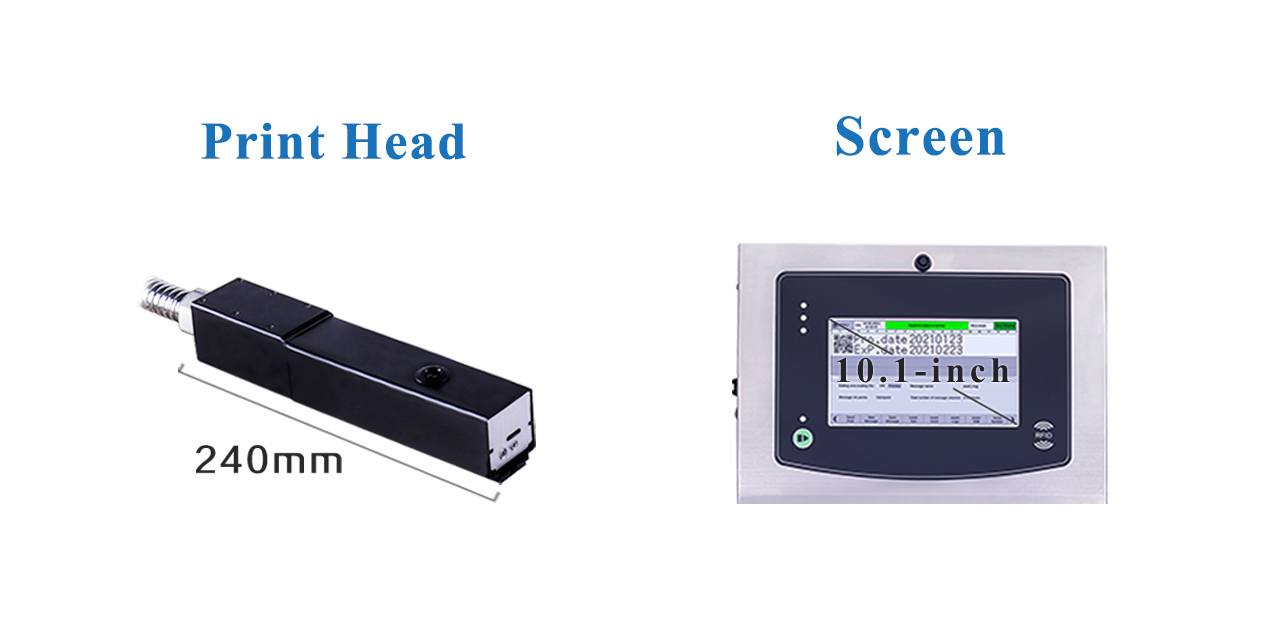

  Print Head	1
  Character lattice	5×6L 7×6L 7×10L 9×8L 9×11L
  	11×11L 16×16L 24×24L 32×32L
  	11×11B 16×16B 24×24B 32×32B
  Character height	2-20mm
  Printing distance	The best printing distance 12mm
  Number of printing lines	Max 5 lines
  Printing speed	Maximum printing speed 384m / min
  Nozzle size	40μm, 50μm, 60μm, 75μm, 85μm
  Print content	Text, time, date, pattern, shift, serial number, dynamic barcode / QR code, dynamic database (Additional content can be added as required)
  	Barcode types: CODE11, C25INTER, CODE39, EXCODE39, EAN13, EAN13x, CODE128, CODE16K, CODE49, CODE93, Flattermarken, UPCA, UPCE, EAN14, VIN, NVE18 2D code types:QRcode, DataMatrix, MicroQRcode, PDF417, PDF417TRTRUNC, MICROPDF417 (More types can be provided on demand)
  counter	More than 20 independent counters
  Printing material	Carton, plastic, metal, sheet, pipe, stone, cable, glass, electronic components, auto parts, industrial chemical packaging, medical food gift box
  Ink type	Food grade ink, edible egg ink, dye ink, pigment ink
  Ink color	Black, white, red, yellow, blue, green, invisible,
  Display screen	10.1-inch display
  Main hardware	American TI AM3358 industrial grade CPU,American Xilinx Spartan7 industrial grade FPGA
  Communication Interface	USB data port

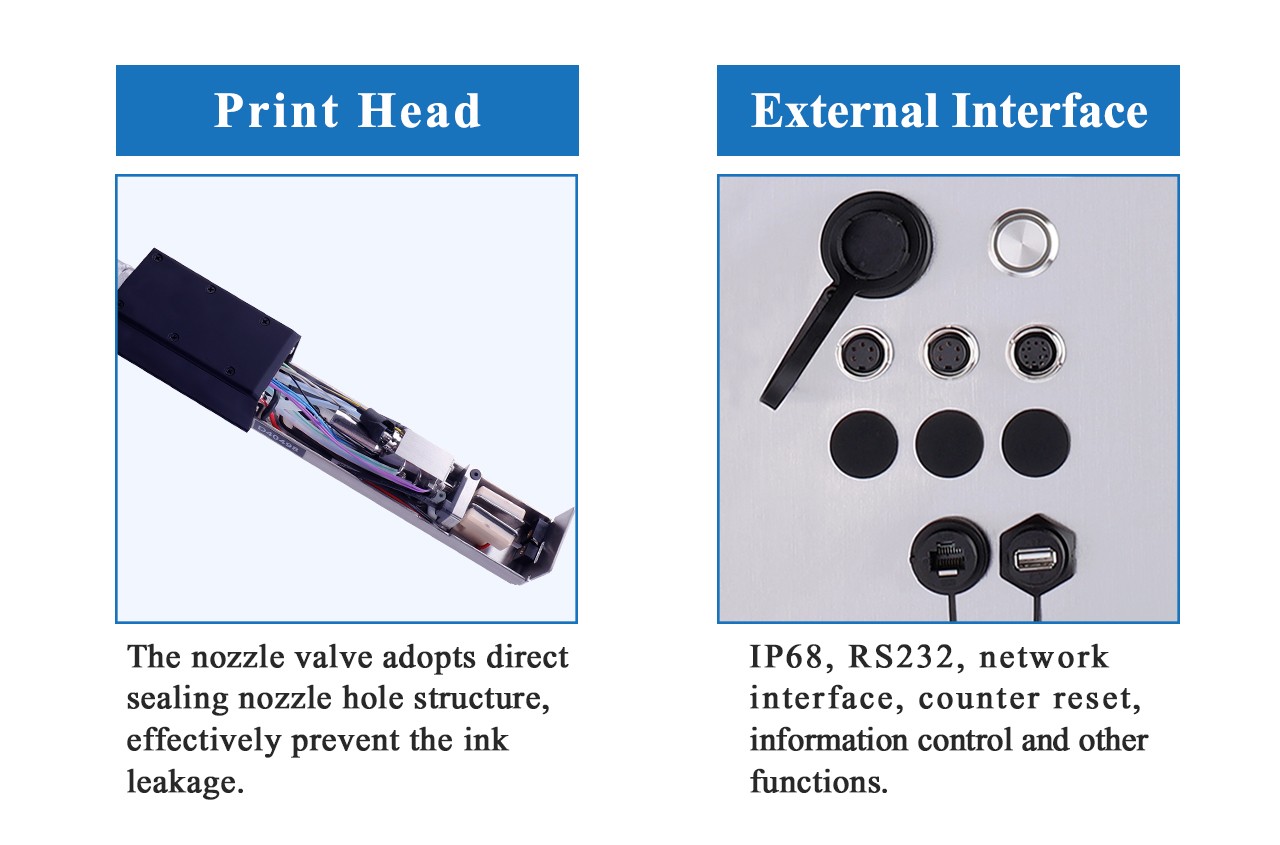

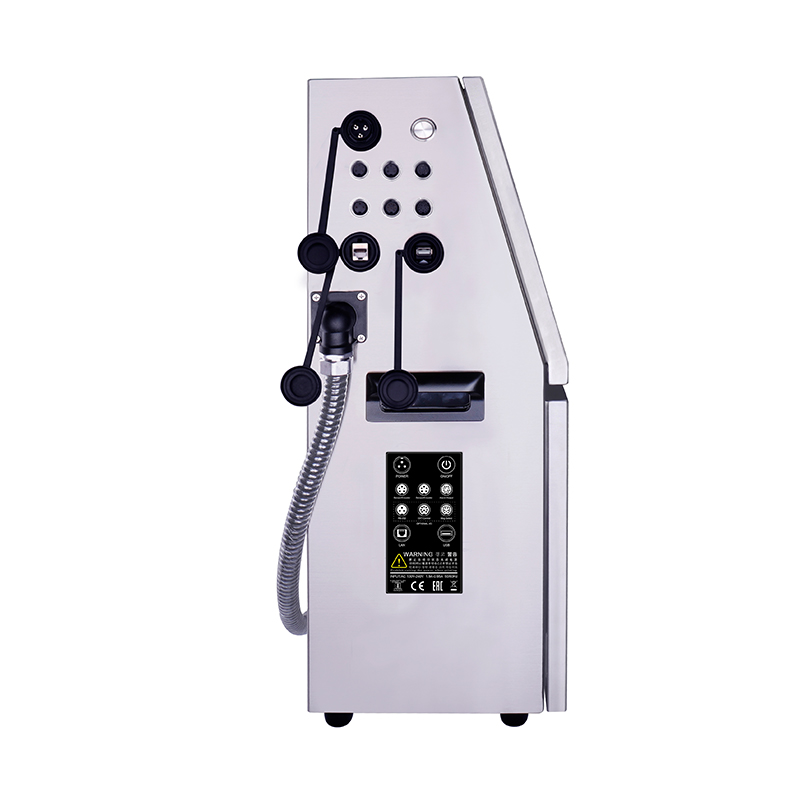

  External interface	Optical eye,Encoder,Reverse and upside down control, Signal light alarm output,Serial number output control, External printing information selection
  Catheter length	3 meters /6 meters
  Support language	Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc.)
  Power parameters	Input 200-240V AC 50 / 60Hz
  Rated power	150W
  Machine material	304 stainless steel
  Protection level	IP55

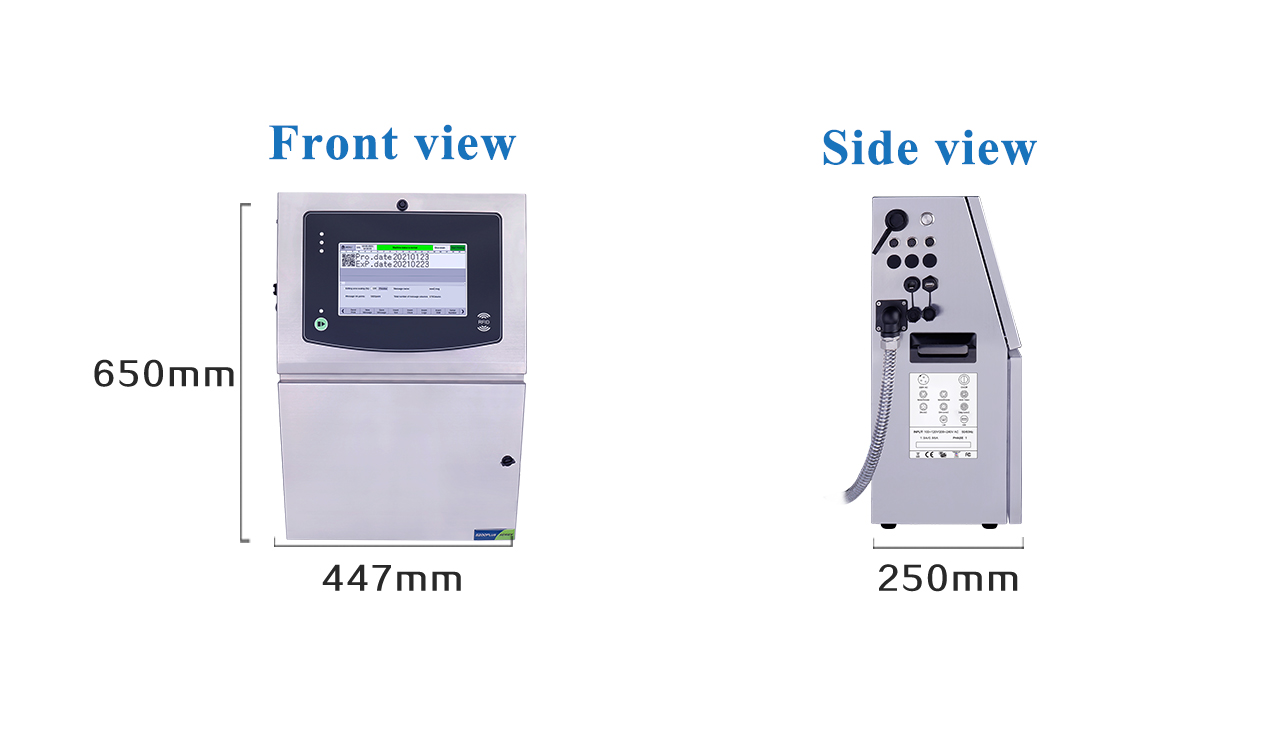

  Machine specifications	Host 447mm * 242mm * 650mm
  Operating temperature	0 ℃-45 ℃ (depending on the ink used)
  Working humidity	10%-90% (no frosting)
  Related certification	RoHS, CE, EAC

• What Is a Continuous Inkjet Printer?

  Continuous inkjet printers work by spraying strictly controlled ink particles onto the target to form clear and long-lasting marks. Inkjet printers are roughly divided into two categories: printers connected to office or home PCs, and continuous inkjet (CIJ) printers used in factory production lines. Mufeng's S series is a continuous inkjet (CIJ) printer, which is mainly used to print expiration date, batch number, barcode/2D code on products in factories and warehouses. Due to the non-contact nature of inkjet printing, blur and product damage are essentially avoided. This technology can print at high speed from any direction or direction, and the compact print head can be easily installed on the packaging machine or filling machine, making the installation process easy and free. Continuous inkjet printers (CIJ) operate by ejecting precisely controlled ink droplets onto primary packaging such as cans, bottles, films and all other forms of primary packaging substrates. These codes are used to print the expiration date, otherwise called the best expiration date and batch number, production information or bar code.




  How to Run Continuous Inkjet Printers?

  Continuous inkjet printing is simpler and cheaper than many complex technologies used in coding/marking products today. How does the CIJ printer work? Here is a brief overview: Continuous inkjet printers create a continuous flow of ink by pushing liquid ink through the gun body and micro nozzles through a high-pressure pump. Many industries need high-speed printing, which is what CIJ can provide. CIJ is a non-contact continuous ink system that actually eliminates potential damage to packaging or products during the printing process. Whether it is occasionally in the production process or daily printing, CIJ printing is very suitable for use in harsh environments, and can be used with various inks according to the specific needs of your industry. Solvent-based inks containing alcohols or ketones can also be used in continuous inkjet printers, thereby shortening the drying time. It is important to note that if your printing process needs to be started and stopped frequently, it is recommended to use ink that does not freeze. Graphic printing, expiration date and barcodes can be done using small character continuous inkjet printers, which can provide accuracy and can seamlessly work with curved, flat or textured surfaces.




  Continuous inkjet printer classification

  Inkjet printers are roughly divided into two categories: continuous and on-demand.

  On-demand types are further divided into piezoelectric, thermal and valve types.




  Continuous inkjet technology

  Continuous inkjet printer technology is an ideal choice for marking on flat or curved surfaces. It is a non-contact printing method that can use a variety of continuous inkjet inks to print on almost all substrates. Continuous inkjet printers print batch codes, serial numbers, barcodes and traceability information onto products and packaging. These printers use high-performance inks to meet your application needs.
