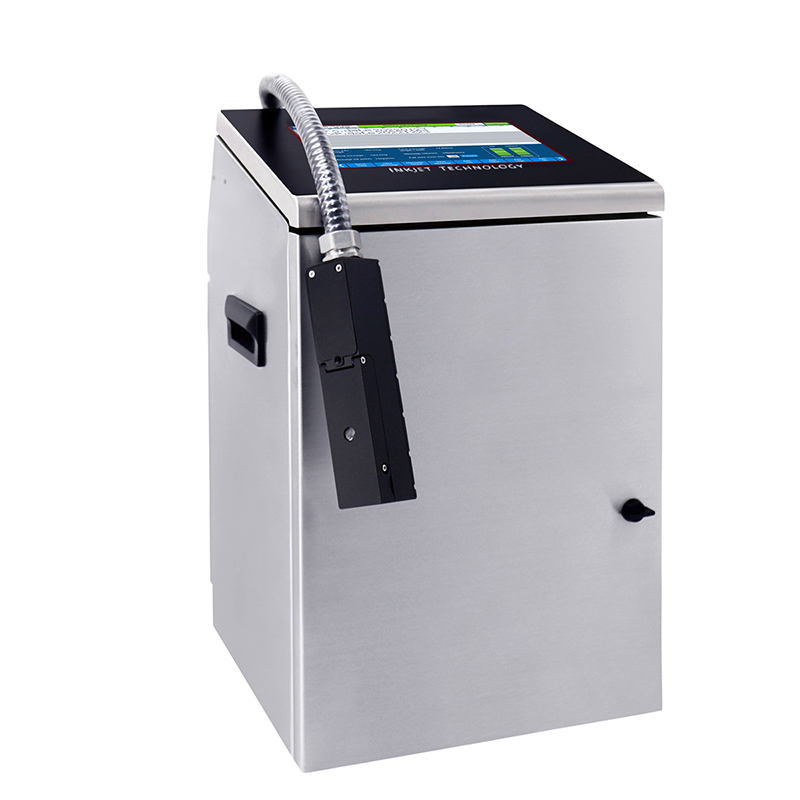

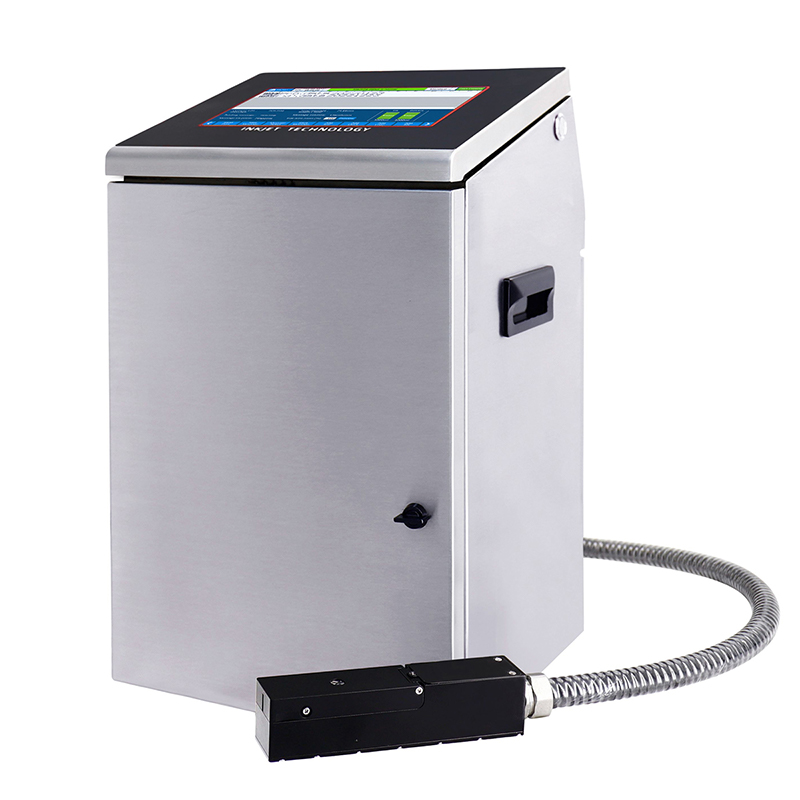

M2000 High Stable CIJ Inkjet Printer

• The mixing cylinder adopts an oblique bottom design so that the ink is not easy to precipitate.

• Ultra-highly integrated industrial-grade new motherboard architecture, stable function, better cope with extremely harsh use environments.

•

• Printing parameters	Nozzle duct	3m/6m
  	Nozzle specifications	42u, 55u, 70u
  	Printing height	2-20mm
  	Printing distance	3-30mm
  	Number of printing lines	1~4 lines
  	Maximum printing speed	528 meters/min
  	Counters	Counters up to 24 counters
  	Ink color	black, red, blue, green, invisible, yellow, blue and white
  	Ink type	High adhesion, high temperature resistance, special for glass, permeability, food grade, oil resistance, pigment ink
  	Printing materials	carton, plastic, metal, sheet, pipe, stone, glass, electronic components, auto parts, industrial chemical packaging, medicine and food gift packaging boxes
  	Print content	text, time, date, pattern, shift, serial number, dynamic barcode/QR code, dynamic serial port data, dynamic database







  Machine parameters	Operating system	Embedded Linux security operating system

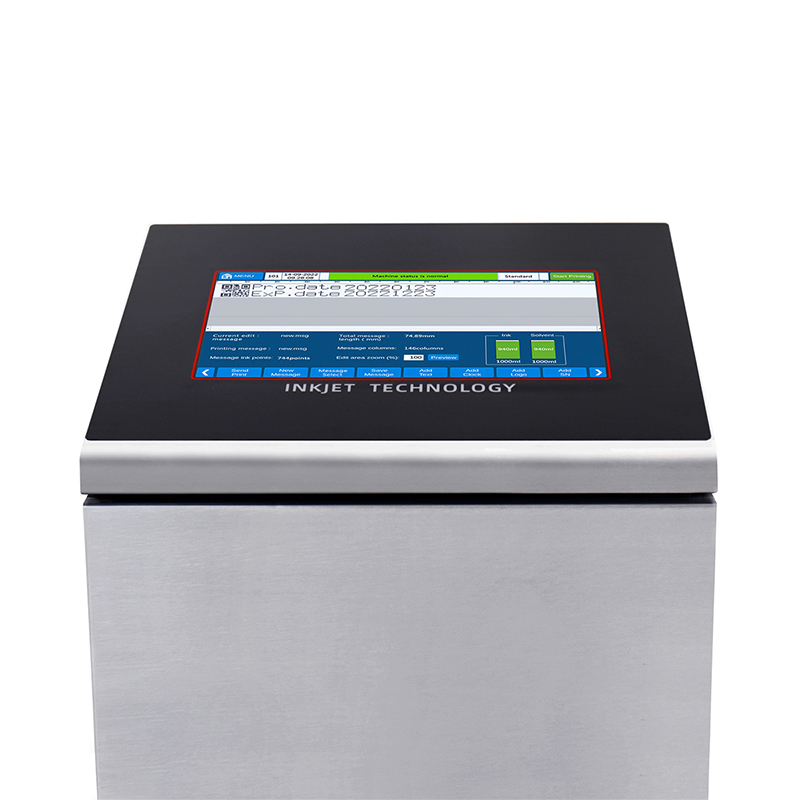

  	Display screen	10.1-inch color display, industrial touch screen

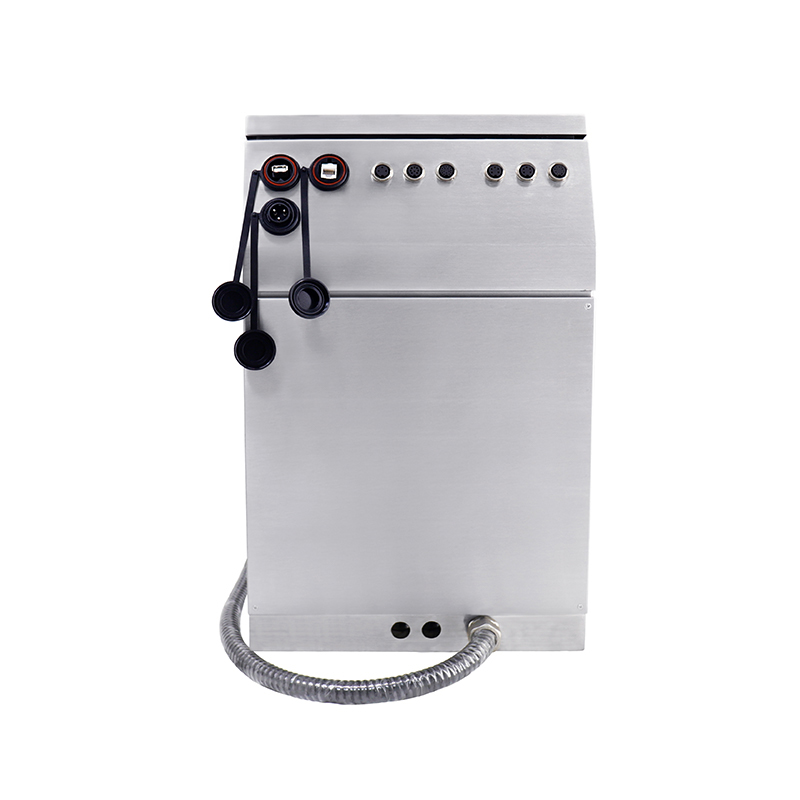

  	Communication interface	USB, RS232, network port, connect to the enterprise MES management system (various external device protocols can be added)
  	Protection class	IP65
  	Power parameter	input 100-240V AC
  	Rated power	190W
  	Motherboard memory	256M
  	Machine material	304 stainless steel
  	Size specification	337mm*316mm*561mm (length*width*height)
  	Working environment	temperature 0-45℃/humidity 30-70%Rh
  	Related certifications	CE, EAC
  	Net weight	19.94kg
  	Main hardware	U.S. TI AM3358 industrial-grade CPU, U.S. Xilinx Spant6 industrial-grade FPGA, ASIC chip External interface light eye, encoder, alarm light, information control
  	Supported languages	Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Norwegian, Portuguese, Japanese, Spanish, Italian, etc.)

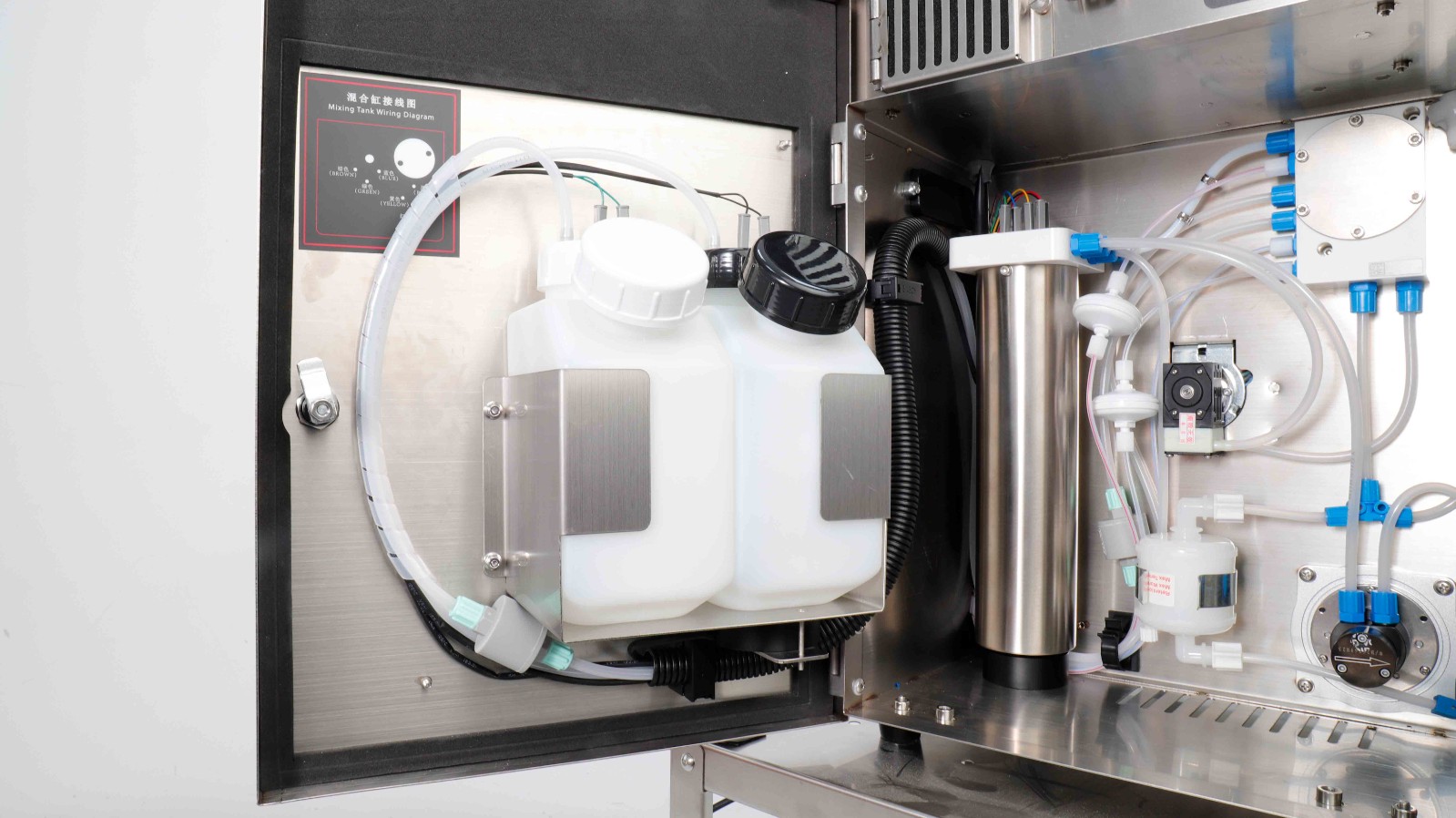

  • The mixing tank adopts an oblique bottom design so that the ink is not easy to precipitate.

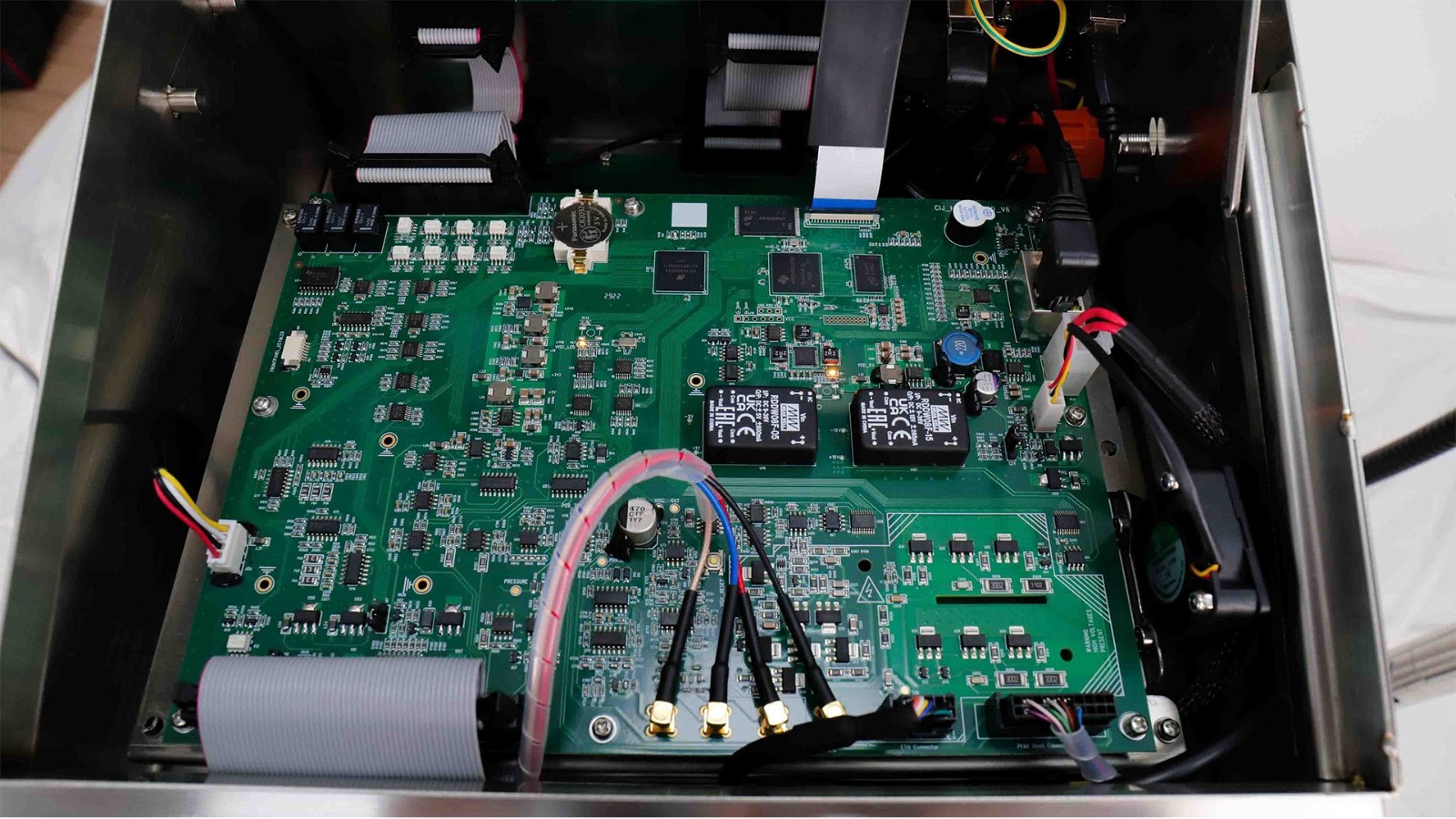

  • The ultra-highly integrated industrial-grade new motherboard architecture has stable functions and rapid operation, which can better cope with extremely harsh environments.

  • The white ink machine has an automatic stirring function to solve the distress of pigment ink precipitation.

  • The nozzle is easy to clean and not easy to clog the nozzle, and the printing is stable and durable.

  • The recovery pump has high stability, is not easy to get stuck in the pump, is durable, the stainless steel outer body has excellent heat dissipation, supports multiple communication interfaces, and multiple national languages.
