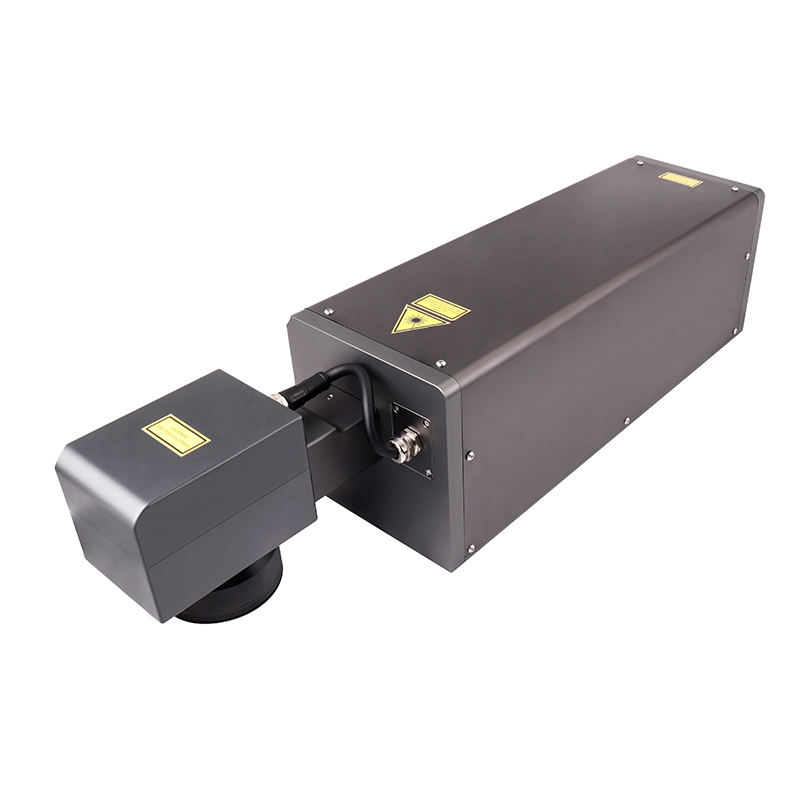

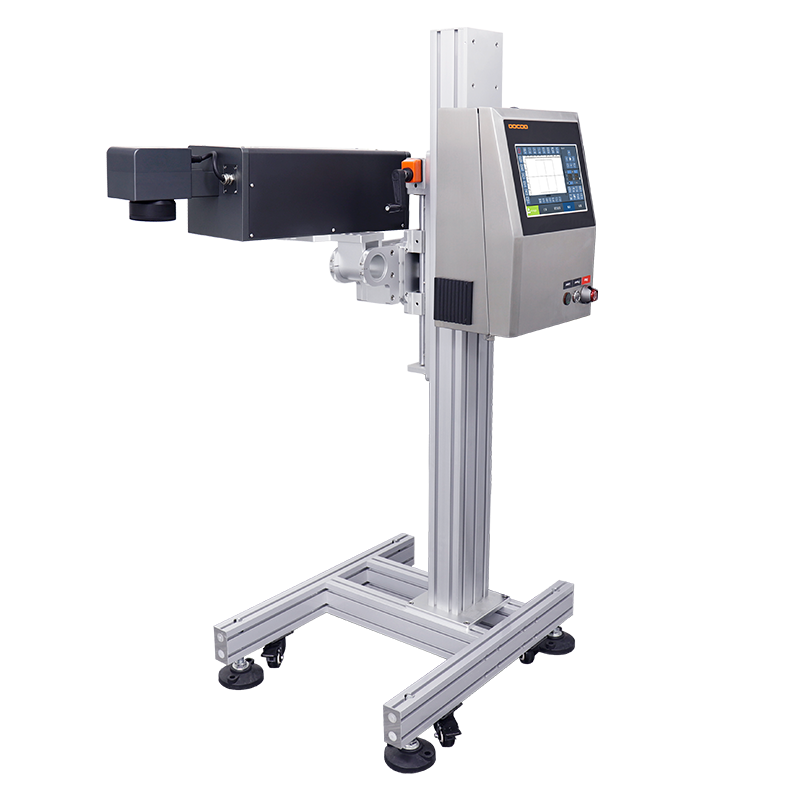

UV Laser Marking Machine

• High Precision

• Reduction of Thermal Effect

• Stable Performance

• Model	MF-LU003B/5B/10B
  Laser Power	3W/5W/10W
  Laser Wavelength	355nm
  Marking Precision	≤3-5μ
  Marking Area	50-300MM（Can choose other range）
  Application	Nometal / non-metallic material
  Marking Speed	≤18000mm/s
  Min Line Width	0.02mm
  Min Character	Adjust freely within marking range
  Supported Formats	DXF/PLT/AI/PNG/JPG/BMP
  Machine Power	600w/800w
  Voltage input	110v-220v/50-60Hz
  Cooling Mode	Air cooling / water cooling

• Software system

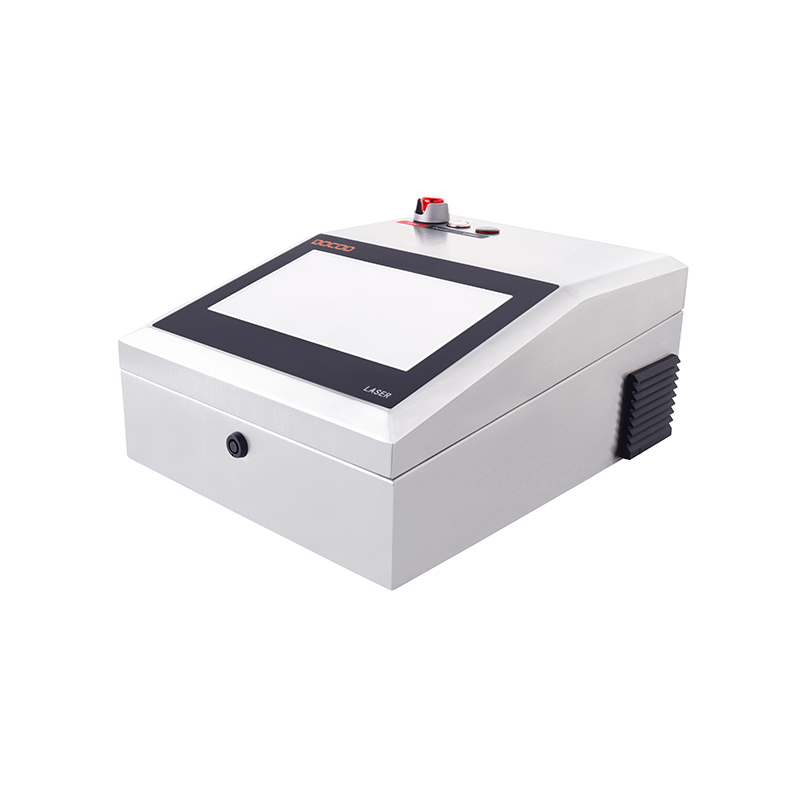

  Laser control system features

  Hardware time is not lost (working continuously in stock for more than 1 year)

  Supports network port and serial port communication, touch control and mouse control

  Operating temperature -10℃ to +60℃

  Panel waterproof and dustproof

  Software support laser state alarm and monitoring

  Software supports serial communication to turn on and off the laser

  Support automatic removal of font intersections to achieve perfect laser jet effect

  Support preview path and line maximum matching line quick check

  Support path optimization function, customers do not need to move files on the interface, it can automatically adjust to the optimal position

  Support marking total number shutdown save, boot into marking state and other Settings

  Multiple languages: Simplified Chinese, traditional Chinese, Korean, Japanese, German, French, Arabic, Spanish, Portuguese, Vietnamese, Persian, Russian, Thai, Polish, and Turkish

  Supports remote monitoring programs over the network

  Supports real-time adjustment of information position during marking
