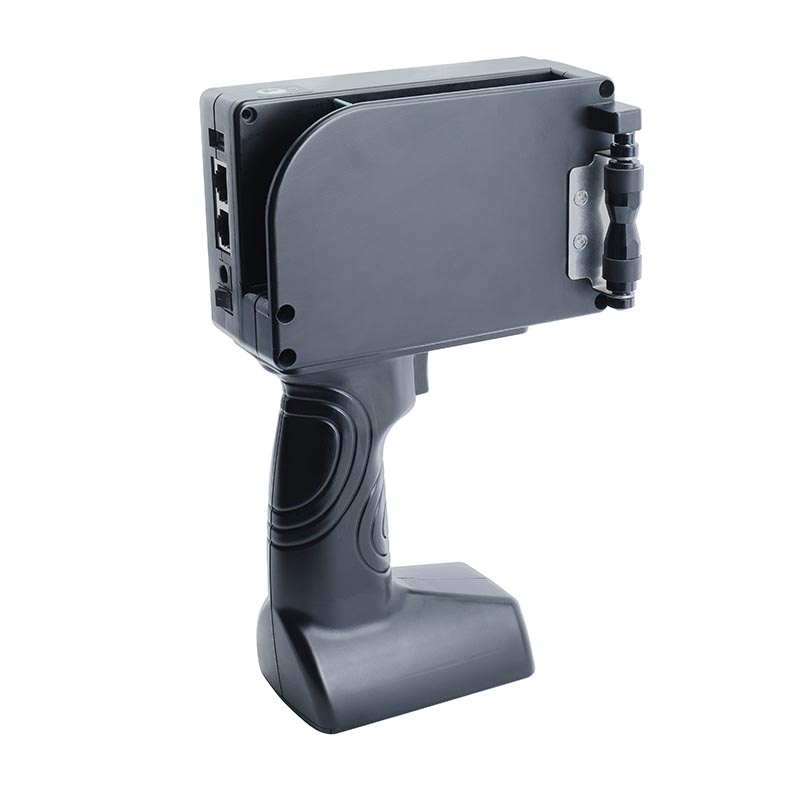

MFT130 Handheld Code Machine

Handheld Code Machine Printing Height 25.4 mm: MFT130-H thermal foam handheld code machine series, ergonomically designed comfortable handle, light and compact size, easy to carry, suitable for various use scenarios. Handheld and online integrated, suitable for various production and operation environments, with strong flexibility.

The maximum printing height can reach 25.4mm, and any number of lines can be printed within the printing height range

Send Email:

Products DETAILS

MFT130 Handheld Code Machine

MFT130 Handheld Code Machine


Handheld Code Machine Printing Height 25.4 mm:

T130-H thermal foam handheld code machine series, ergonomically designed comfortable handle, light and compact size, easy to carry, suitable for various use scenarios.

Handheld and online integrated, suitable for various production and operation environments, with strong flexibility.

The maximum printing height can reach 25.4mm, and any number of lines can be printed within the printing height range


Machine Type
MFT130 handheld code machine
Nozzle type TIJ 2.5 thermal foaming nozzle
Nozzle number 1
Printing accuracy Maximum: 600DPI * 600DPI

Vertical optional: 100DPI, 150DPI, 300DPI, 600DPI

Horizontal optional: 30-600DPI precision adjustment

Printing height 25.4mm
Printing distance 1-5mm
Number of printing lines Any number of lines can be edited within the effective printing height
Printing speed 406m/min(90DPI), 304m/min(120DPI), 240m/min(150DPI), 120m/min(300DPI), 60m/min(600DPI)
Print content Text, time, date, pattern, shift, serial number, dynamic barcode / QR code, dynamic serial data, dynamic database(Additional content can be added as required)
Barcode types: CODE11, C25INTER, CODE39, EXCODE39, EAN13, EAN13x, CODE128, CODE16K, CODE49, CODE93, Flattermarken, UPCA, UPCE, EAN14, VIN, NVE18

2D code types:QRcode, DataMatrix, MicroQRcode, PDF417, PDF417TRTRUNC, MICROPDF417
Counter More than 20 independent counters
Printing material Carton, plastic, metal, sheet, pipe, stone, cable, glass, electronic components, auto parts, industrial chemical packaging, medical food gift box
Ink type Food grade, water-based, oily, weak solvent, solvent
Ink color Black, white, red, yellow, blue, green, invisible, UV
Operating system Embedded Linux security operating system

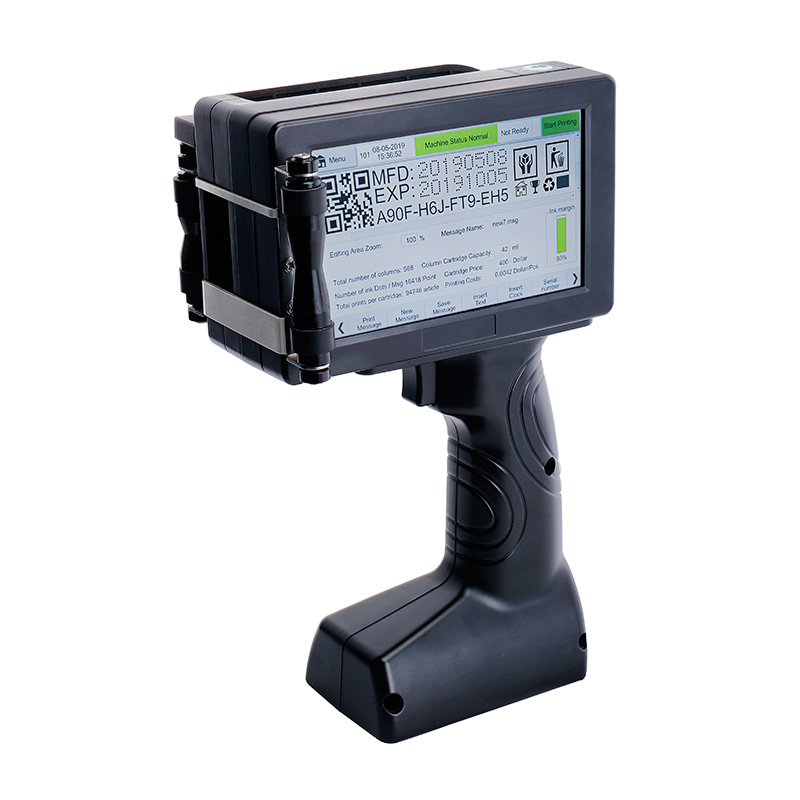

display screen 5 inch color display, industrial touch screen
Main hardware American TI AM3358 industrial grade CPU, American Xilinx Spant9 industrial grade FPGA, TIJ dedicated ASIC chip
Communication Interface Charging interface, USB, RS232
External interface Optical eye, encoder, flip upside down control
Nozzle installation Built-in integrated nozzle
Support language Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Norwegian, Portuguese, Japanese, Spanish, Italian, etc.)
Power parameters Input 100-240V AC; output 12.6V DC, 3A (power charger)
Battery parameters 12.6V / 3350mAh lithium battery pack (supports a single removable lithium battery)
Machine material ABS + PC + Metal
Machine specifications 220mm * 140mm * 95mm
Working environment Temperature 0-45 ℃ / Humidity 30-70% Rh
Related certification RoHS, CE, FCC


With its sleek and compact design, our handheld code machine provides a convenient solution for on-the-go professionals, allowing you to effortlessly capture, process, and store data with ease. Say goodbye to the tedious and error-prone manual data entry methods and embrace a faster, more accurate approach.

Equipped with cutting-edge technology, the handheld code machine of Mufeng enables seamless integration with various systems, ensuring compatibility and flexibility across different platforms. Whether you need to scan barcodes, read QR codes, or capture data from printed documents, this versatile device has got you covered.

We understand the importance of data security, which is why our handheld code machine incorporates state-of-the-art encryption technology to safeguard your sensitive information. Rest assured that your data will remain confidential and protected throughout the entire processing journey.

Whether you're a logistics professional managing inventory, a retail employee processing sales, or a healthcare provider organizing patient records, our handheld code machine is designed to enhance your productivity and efficiency. Its intuitive interface and user-friendly features make it accessible to all, regardless of technical expertise.

In addition to its exceptional functionality, our handheld code machine offers long-lasting battery life, ensuring uninterrupted usage even during extended work sessions. The durable construction guarantees reliability, withstanding the demands of everyday use.

Order your handheld code machine now and witness the transformation it brings to your work process. Maximize your productivity and make data processing effortless and accurate like never before.

Software features

The stable Linux security operating system, combined with the self-developed high-speed printing management system, can achieve an ultra-high-speed printing response time within 10 milliseconds per product.
High-quality content, high-speed printing, up to 406m / min
One object, one code. Identification data printing, anti-counterfeiting and traceability management, network-related product information can be queried
Real-time calculation of printing cost function, directly display the printing cost of each message, which is convenient for manufacturers to calculate prices
Support GS1 DataMatrix, serial format to meet the printing requirements of various industries
Compatible with a variety of weighing protocols, can be connected with multiple manufacturers of different models of electronic scales, and directly print the weight and price barcodes in line with supermarkets
Support access to wireless keyboard and mouse, flexible control interface function
Support scanner input information, not only can quickly enter information, but also to ensure the accuracy of information
1-6 gray scale adjustment, plus black printing effect, the display is clearer when printing different substrates
Unique encoder stepless frequency conversion function, which can adjust the printing width as required
The original nozzle double-row alternating mode, the left and right rows of ink cartridges are alternately printed to prevent nozzle clogging and effectively extend the life of the ink cartridges


Hardware features

Using AM3358 industrial-grade high-performance CPU and Spartan6 industrial-grade high-computing FPGA as the core control chip, it can easily process various variable printing data in the case of high-speed printing.
Stable hardware layout, while using anti-interference industrial electronic components, can still guarantee excellent printing effects in various interference harsh environments.
High-precision SMT patching process, detailed DIP plug-in post-solder, multi-dimensional PCBA finished product testing, to ensure the high quality and reliability of the hardware from all aspects of the process.
The integrated motherboard design is more reliable than the letter board design, and the data transmission interaction is faster, more stable, and safer.


Code Machine Structural features

Built-in integrated nozzle design, easy to carry
The maximum printing height can reach 25.4mm, and any number of lines can be printed within the printing height range
Handheld and online printing, dual use, one machine for multiple occasions

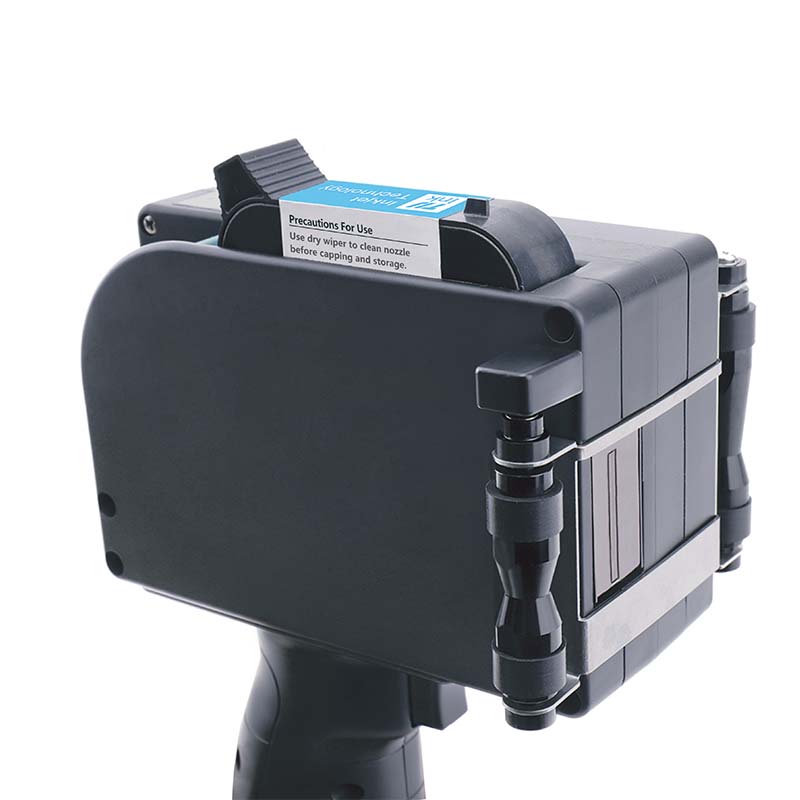

Snap-on ink cartridge installation, firm and reliable, easy to replace

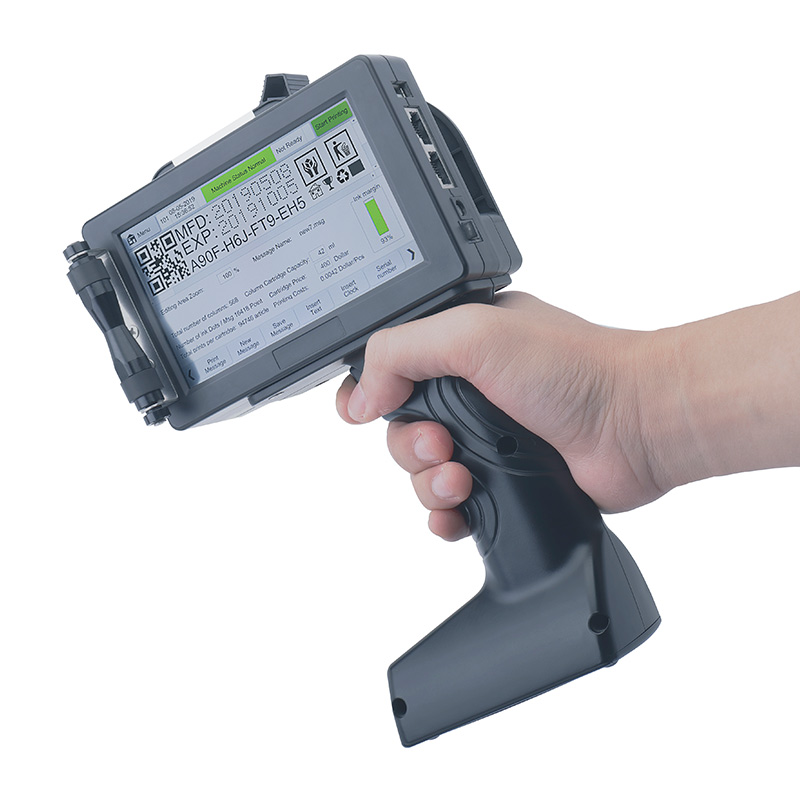

Ergonomically designed comfortable handle, suitable for long-term use
Built-in integrated hidden encoder, small size, not easy to be damaged by collision, and can accurately calculate the speed of sliding printing
The interchangeable roller structure provides a variety of shapes and sizes to adapt to the surface rolling of various products to ensure the best printing effect
Replaceable rechargeable large-capacity battery, a variety of models to provide options to ensure long standby and working time


Ink supply characteristics

RFID non-contact chip, can identify the type of ink, automatically match the optimal printing parameters
Automatic calculation system of ink remaining quantity, predicting the number of prints left by each ink cartridge
Clean ink cartridge technology combines the nozzle and ink, no need to fill the ink messy, easy maintenance
Ink cartridge preheating function, can heat the nozzle in low temperature environment to maintain a stable printing status
Configuration 42ml ink cartridge


Other features about MFT130-H Handheld Code Machine

Related content can be customized according to needs
